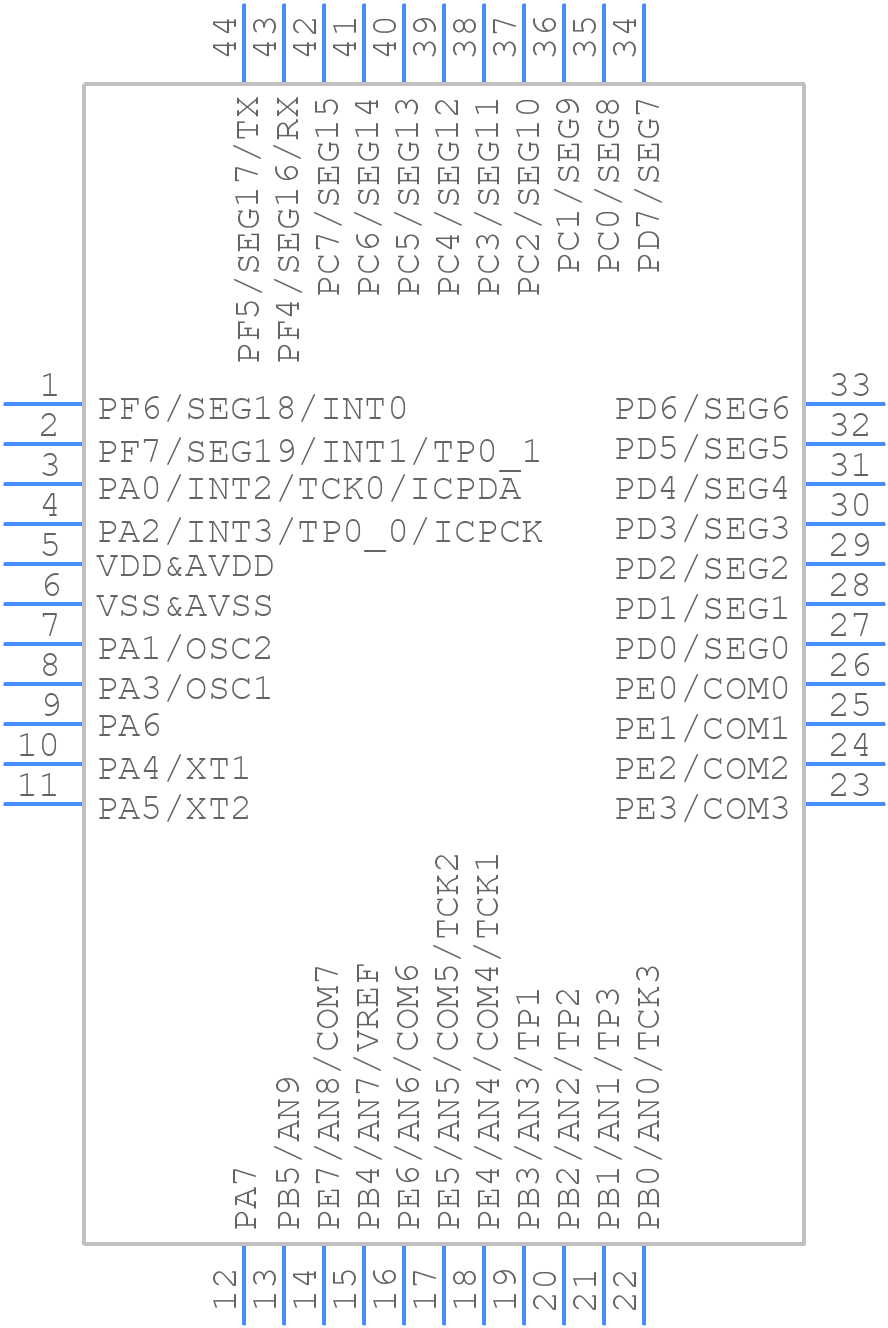

HT67F489 - Holtek

HT67F489 Details

• Manufacturer Part Number:

  HT67F489

• Part Life Cycle Code:

  Active

• HTS Code:

  8542.31.00.15

• Manufacturer:

  Holtek Semiconductor Inc

• YTEOL:

  7.5

• Has ADC:

  YES

• Additional Feature:

  OPERATES WITH 2.2VMIN @ 8 MHZ

• Bit Size:

  8

• Boundary Scan:

  NO

• CPU Family:

  HT67

• Clock Frequency-Max:

  16 MHz

• DAC Channels:

  NO

• DMA Channels:

  NO

• Format:

  FIXED POINT

• Integrated Cache:

  NO

• JESD-30 Code:

  S-PQFP-G44

• Length:

  10 mm

• Low Power Mode:

  YES

• Number of External Interrupts:

  4

• Number of I/O Lines:

  42

• Number of Serial I/Os:

  1

• Number of Terminals:

  44

• Number of Timers:

  4

• On Chip Data RAM Width:

  8

• On Chip Program ROM Width:

  16

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• PWM Channels:

  YES

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  LFQFP

• Package Equivalence Code:

  QFP44,.47SQ,32

• Package Shape:

  SQUARE

• Package Style:

  FLATPACK, LOW PROFILE, FINE PITCH

• RAM (bytes):

  256

• ROM (words):

  8192

• ROM Programmability:

  FLASH

• Seated Height-Max:

  1.6 mm

• Speed:

  16 MHz

• Supply Current-Max:

  5 mA

• Supply Voltage-Max:

  5.5 V

• Supply Voltage-Min:

  5 V

• Supply Voltage-Nom:

  5 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.8 mm

• Terminal Position:

  QUAD

• Width:

  10 mm

• uPs/uCs/Peripheral ICs Type:

  MICROCONTROLLER, RISC
