HTPA80x64dR2L10/0.7F7.7 - Heimann

Description: Infared Thermopile array sensors for remote temperature measurement and imaging applications

Download HTPA80x64dR2L10/0.7F7.7 Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this HTPA80x64dR2L10/0.7F7.7 model

Email notifications will be applied after download.

Send part feedback

Symbol

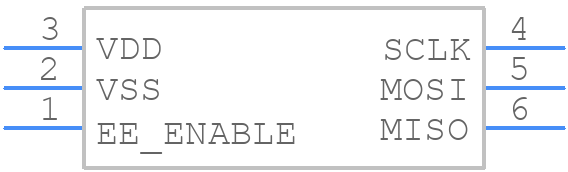

HTPA80x64dR2L10/0.7F7.7 - Heimann - PCB symbol

PCB Footprints

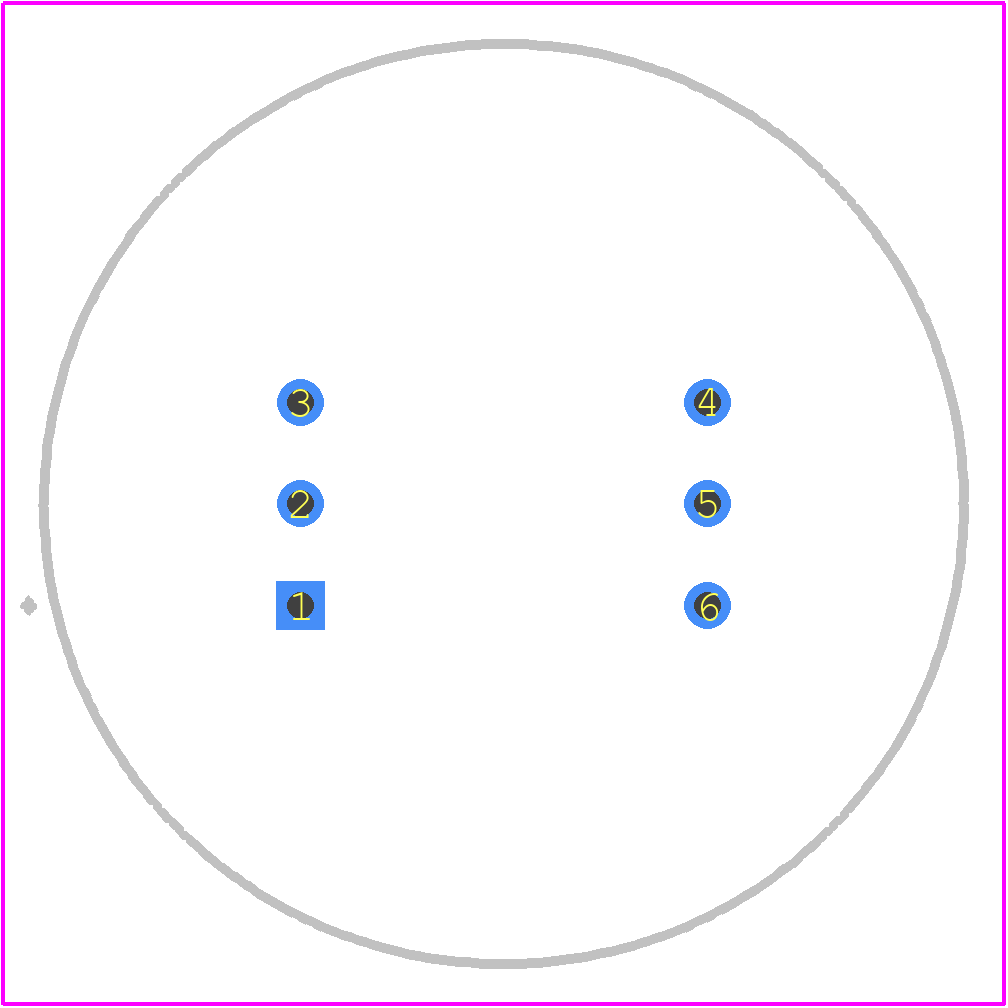

HTPA80x64dR2L10/0.7F7.7 - Heimann PCB footprint - Other - Other - HTPA80x64dR2L10

3D Models

HTPA80x64dR2L10/0.7F7.7 - Heimann - 3D model - Other - HTPA80x64dR2L10

Datasheet Download Datasheet
Stock & Prices Price & Stock for HTPA80x64dR2L10/0.7F7.7
Part Number HTPA80x64dR2L10/0.7F7.7
Manufacturer Heimann
Pin Count 6
Part Category Integrated Circuit
Package Category Other
Footprint Name Other - HTPA80x64dR2L10
Released Date Jun 8, 2026
Last Modified Date Jun 8, 2026 1:14 PM UTC
Pinout / Pin List Click Here (Member Only)

HTPA80x64dR2L10/0.7F7.7 Details

Manufacturer Part Number:
HTPA80x64dR2L10/0.7F7.7
Manufacturer:
Heimann Sensor GmbH
