- Part Number HTRC11001T/03EE
- Manufacturer NXP
- Pin Count 14
- Part Category Integrated Circuit
- Package Category Small Outline Packages
- Footprint Name Small Outline Packages - SO14: plastic small outline package; 14 leads; body width 3.9 mm
- Released Date Nov 20, 2021
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
HTRC11001T/03EE Details
-
Manufacturer Part Number:
HTRC11001T/03EE
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Part Package Code:
SOIC
-
Package Description:
3.90 MM, PLASTIC, MS-012, SOT108-1, SOP-14
-
Pin Count:
14
-
HTS Code:
8542.39.00.01
-
Manufacturer:
NXP Semiconductors
-
Additional Feature:
RFID Card Reader
-
JESD-30 Code:
R-PDSO-G14
HTRC11001T/03EE Frequently Asked Questions (FAQs)
-
NXP provides a recommended PCB layout in the application note AN11555, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
-
The HTRC11001T/03EE is a flexible device that can be configured for different frequency bands using external components and programming. NXP provides a configuration guide in the application note AN11556, which includes examples for popular frequency bands such as 868 MHz, 915 MHz, and 2.4 GHz.
-
The maximum transmit power of the HTRC11001T/03EE is +20 dBm (100 mW), but this can be limited by the regulatory requirements of the target region and the specific application. It's essential to check the relevant regulations and ensure that the device is operated within the allowed power limits.
-
NXP provides a regulatory guide in the application note AN11557, which includes information on the regulatory requirements for different regions, such as FCC (USA), ETSI (Europe), and TELEC (Japan). It's essential to check the relevant regulations and ensure that the device is operated within the allowed parameters.
-
The operating temperature range of the HTRC11001T/03EE is -40°C to +85°C, but this can be extended to -40°C to +105°C for some applications. It's essential to check the datasheet and application notes for specific temperature range limitations and recommendations.
Trust Checks
Community Provided
System Verified
Community Approved
HTRC11001T/03EE Overview

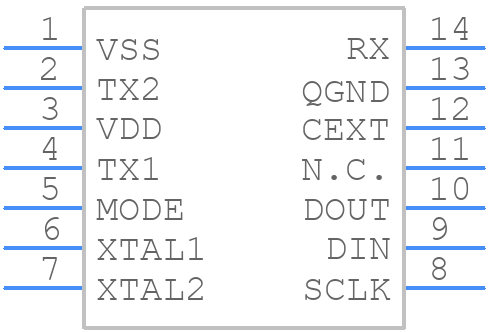

Use the download button to access the HTRC11001T/03EE schematic symbol, PCB footprint, and 3D model.
