HTSS-125-01-G-D - SAMTEC

Description: Headers & Wire Housings .100" High-Temp Shrouded Terminal Strip

Download HTSS-125-01-G-D Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
HTSS-125-01-G-D - SAMTEC - PCB symbol
click to zoom
PCB Footprints

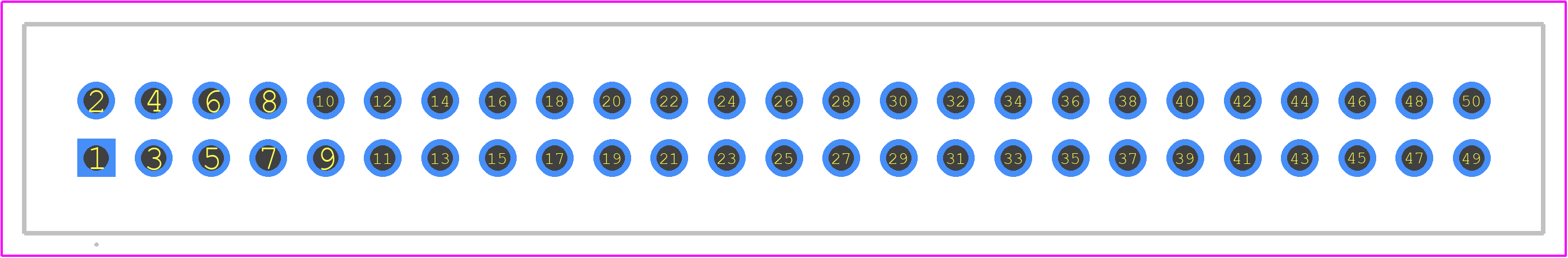

HTSS-125-01-G-D - SAMTEC PCB footprint - Other - Other - HTSS-125-01-G-D-3
click to zoom
3D Models
HTSS-125-01-G-D - SAMTEC - 3D model - Other - HTSS-125-01-G-D-3
click to zoom

HTSS-125-01-G-D Details

  • Manufacturer Part Number:

    HTSS-125-01-G-D

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Country Of Origin:

    USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    1 Week

  • Manufacturer:

    Samtec Inc

  • YTEOL:

    10

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    GOLD (10) OVER NICKEL (50)

  • Contact Finish Termination:

    Gold (Au) - with Nickel (Ni) barrier

  • Contact Gender:

    MALE

  • Contact Material:

    PHOSPHOR BRONZE

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    2

  • Option:

    GENERAL PURPOSE

  • Rated Current (Signal):

    3 A

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    50

  • UL Flammability Code:

    94V-0

HTSS-125-01-G-D Frequently Asked Questions (FAQs)

  • The recommended mating sequence is to mate the guide pins first, followed by the signal pins. This ensures proper alignment and prevents damage to the connector.
  • Yes, the HTSS-125-01-G-D connector is designed to withstand high-vibration environments. It has a ruggedized design and is suitable for use in applications with vibration levels up to 20 G.
  • The maximum operating temperature for the HTSS-125-01-G-D connector is 125°C (257°F). However, it's recommended to derate the connector's current-carrying capacity at higher temperatures.
  • Yes, the HTSS-125-01-G-D connector is compatible with lead-free soldering processes. It's designed to meet the requirements of RoHS and WEEE directives.
  • The typical contact resistance of the HTSS-125-01-G-D connector is 10 milliohms or less. This ensures reliable signal transmission and minimizes signal degradation.
