HTSW-114-07-G-T footprint, schematic symbol and 3D model by SAMTEC

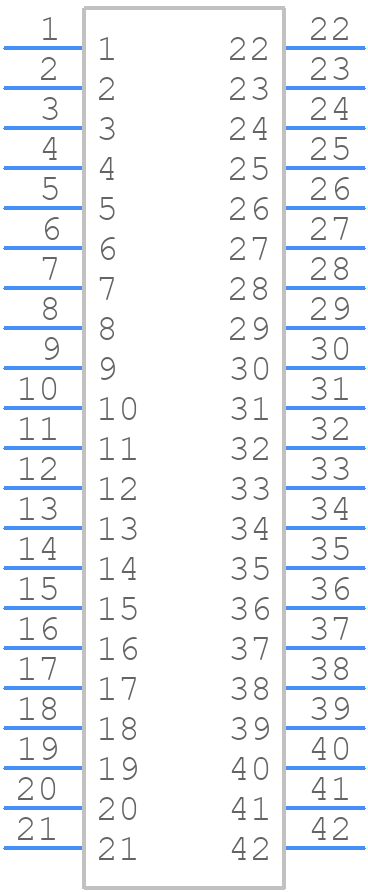

Symbol

click to zoom

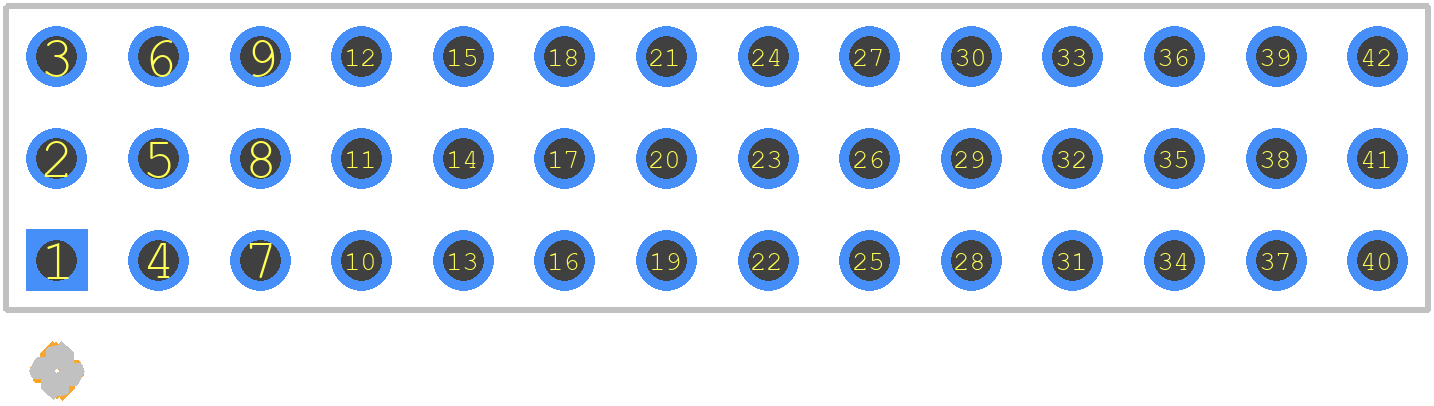

PCB Footprints

HTSW-114-07-G-T - SAMTEC PCB footprint - Other - Other - SAMTEC_HTSW-114-07-G-T

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for HTSW-114-07-G-T
Part Number HTSW-114-07-G-T
Manufacturer SAMTEC
Pin Count 42
Part Category Connector
Package Category Other
Footprint Name Other - SAMTEC_HTSW-114-07-G-T
Released Date Jan 11, 2017
Last Modified Date Nov 15, 2024 1:35 PM UTC
Pinout / Pin List Click Here (Member Only)

HTSW-114-07-G-T Details

Manufacturer Part Number:
HTSW-114-07-G-T
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Country Of Origin:
USA
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Manufacturer:
Samtec Inc
YTEOL:
10
Body Breadth:
0.298 inch
Body Depth:
0.1 inch
Body Length:
1.4 inch
Connector Type:
BOARD CONNECTOR
Contact Finish Mating:
GOLD
Contact Finish Termination:
Gold (Au) - with Nickel (Ni) barrier
Contact Gender:
MALE
Contact Material:
PHOSPHOR BRONZE
Contact Pattern:
RECTANGULAR
Contact Style:
SQ PIN-SKT
DIN Conformance:
NO
Filter Feature:
NO
IEC Conformance:
NO
JESD-609 Code:
e4
MIL Conformance:
NO
Mating Contact Pitch:
0.1 inch
Mating Contact Row Spacing:
0.1 inch
Mixed Contacts:
NO
Mounting Option 1:
LOCKING
Mounting Style:
STRAIGHT
Mounting Type:
BOARD
Number Of Connectors:
ONE
Number Of PCB Rows:
3
Number of Rows Loaded:
3
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-55 °C
Option:
GENERAL PURPOSE
PCB Contact Pattern:
RECTANGULAR
PCB Contact Row Spacing:
2.54 mm
Rated Current (Signal):
6.3 A
Terminal Pitch:
2.54 mm
Termination Type:
SOLDER
Total Number of Contacts:
42

HTSW-114-07-G-T Frequently Asked Questions (FAQs)

The recommended torque for the screws on the HTSW-114-07-G-T connector is 0.5-1.5 in-lbs (0.056-0.169 Nm) according to Samtec's application notes.
Yes, the HTSW-114-07-G-T connector is designed to withstand high-vibration environments. Samtec recommends following their guidelines for vibration testing and ensuring proper screw torque to ensure reliable connections.
The maximum operating temperature for the HTSW-114-07-G-T connector is 125°C (257°F) according to the datasheet. However, it's recommended to derate the connector's current-carrying capacity at higher temperatures.
Yes, the HTSW-114-07-G-T connector is compatible with lead-free soldering processes. Samtec recommends following their soldering guidelines and using a soldering temperature of 260°C (500°F) or lower.
Samtec provides recommended PCB layout and footprint guidelines in their datasheet and application notes. It's essential to follow these guidelines to ensure proper connector mating and to prevent damage to the connector or PCB.
