2.095 X 0.580 INCH, 0.250 INCH HEIGHT, 0.100 INCH PITCH, GREEN, MS-011AC, PLASTIC, DIP-40
Pin Count:
40
Manufacturer Package Code:
PDIP-40
Country Of Origin:
Philippines, Thailand
ECCN Code:
EAR99
HTS Code:
8541.29.00.95
Factory Lead Time:
6 Weeks
Manufacturer:
Microchip Technology Inc
YTEOL:
9
Data Input Mode:
SERIAL
Display Mode:
DIG; DM; SEG
Interface IC Type:
VACUUM FLUORESCENT DISPLAY DRIVER
JESD-30 Code:
R-PDIP-T40
JESD-609 Code:
e3
Length:
51.7525 mm
Multiplexed Display Capability:
NO
Number of Functions:
1
Number of Segments:
32
Number of Terminals:
40
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Output Polarity:
TRUE
Package Body Material:
PLASTIC/EPOXY
Package Code:
DIP
Package Equivalence Code:
DIP40,.6
Package Shape:
RECTANGULAR
Package Style:
IN-LINE
Qualification Status:
Not Qualified
Screening Level:
TS 16949
Seated Height-Max:
6.35 mm
Supply Current-Max:
10 mA
Supply Voltage-Max:
5.5 V
Supply Voltage-Min:
4.5 V
Supply Voltage-Nom:
5 V
Surface Mount:
NO
Temperature Grade:
INDUSTRIAL
Terminal Finish:
Matte Tin (Sn)
Terminal Form:
THROUGH-HOLE
Terminal Pitch:
2.54 mm
Terminal Position:
DUAL
Width:
15.24 mm
fmax-Min:
6 MHz
HV518P-G Frequently Asked Questions (FAQs)
Microchip recommends following a star-grounding topology, keeping the high-voltage traces short and away from low-voltage traces, and using a solid ground plane to minimize noise and EMI. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
To ensure reliable operation in high-temperature environments, it's recommended to follow proper thermal management practices, such as using a heat sink, ensuring good airflow, and keeping the device within its specified operating temperature range. Additionally, it's recommended to derate the device's output current and voltage according to the temperature derating curves provided in the datasheet.
Microchip recommends using low-ESR, high-voltage-rated capacitors with a minimum capacitance of 10uF for the input and output. The capacitors should be rated for the maximum voltage and current of the application, and should be placed as close to the device as possible to minimize parasitic inductance.
To troubleshoot issues with the HV518P-G, it's recommended to follow a systematic approach, starting with checking the input voltage, output voltage, and current. Verify that the device is properly configured and that the input and output capacitors are properly sized and connected. Use an oscilloscope to check for noise and oscillations, and use a thermal camera or thermometer to check for overheating. Consult the datasheet and application notes for troubleshooting guides and FAQs.
Yes, the HV518P-G can be used in a parallel configuration to increase output current. However, it's recommended to follow proper design and layout guidelines to ensure that the devices are properly synchronized and that the output currents are properly balanced. Consult the datasheet and application notes for guidelines on parallel operation.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
HV518P-G Overview

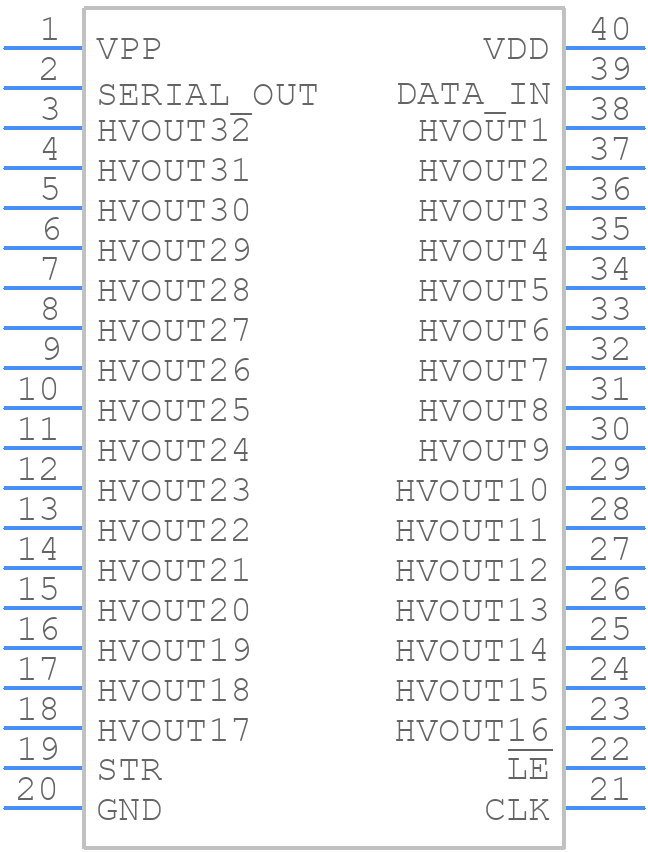

Use the download button to access the HV518P-G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HV518,
or try a keyword search, such as Display Drivers
