HV5308PG-B-G - Microchip

Description: Serial to Parallel Logic Converters 80V 32Ch w/Hi-V CMOS

Download HV5308PG-B-G Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

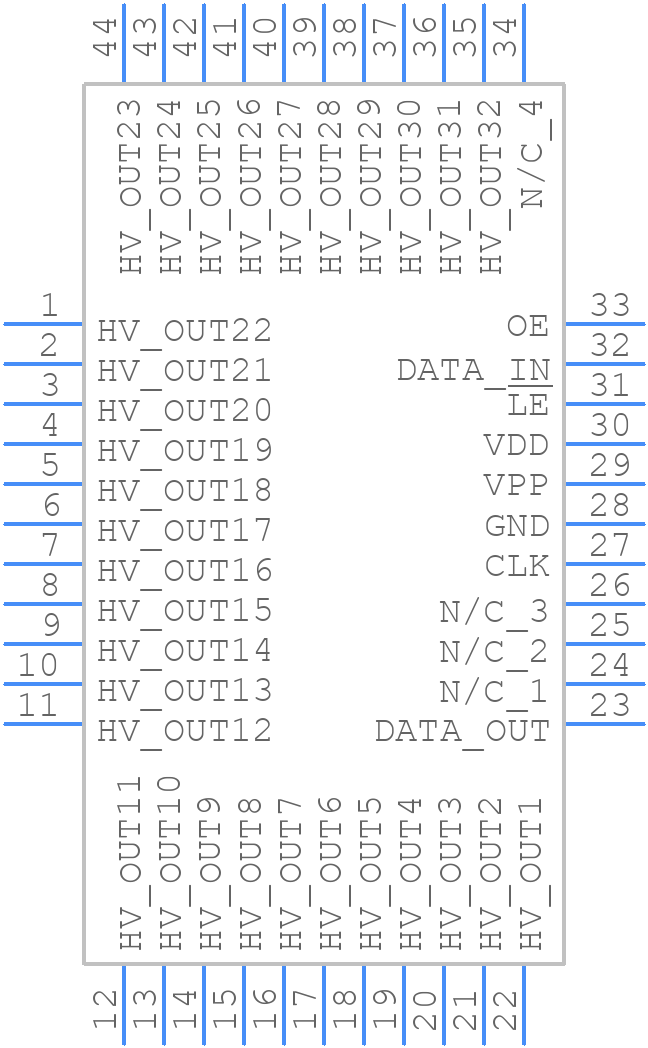

Symbol
HV5308PG-B-G - Microchip - PCB symbol
click to zoom

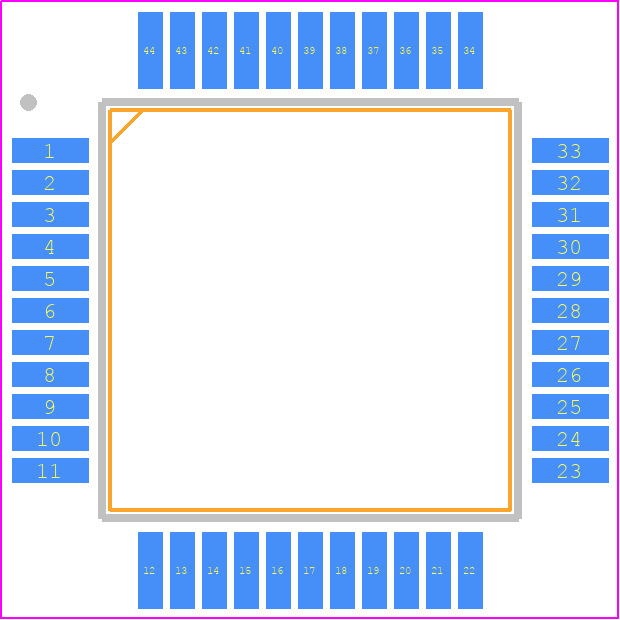

PCB Footprints
HV5308PG-B-G - Microchip PCB footprint - Quad Flat Packages - Quad Flat Packages - 44-Lead PQFP
click to zoom
3D Models
HV5308PG-B-G - Microchip - 3D model - Quad Flat Packages - 44-Lead PQFP
click to zoom

HV5308PG-B-G Details

  • Manufacturer Part Number:

    HV5308PG-B-G

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFP-44

  • Pin Count:

    44

  • Manufacturer Package Code:

    PQFP-44

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.29.00.95

  • Factory Lead Time:

    7 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    8

  • Data Input Mode:

    SERIAL

  • Display Mode:

    SEGMENT

  • Interface IC Type:

    AC PLASMA DISPLAY DRIVER

  • JESD-30 Code:

    S-PQFP-G44

  • JESD-609 Code:

    e3

  • Length:

    10 mm

  • Multiplexed Display Capability:

    NO

  • Number of Functions:

    1

  • Number of Segments:

    32

  • Number of Terminals:

    44

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    QFP

  • Package Equivalence Code:

    QFP44,.52SQ,32

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK

  • Qualification Status:

    Not Qualified

  • Screening Level:

    TS 16949

  • Seated Height-Max:

    2.35 mm

  • Supply Current-Max:

    15 mA

  • Supply Voltage-Max:

    13.2 V

  • Supply Voltage-Min:

    10.8 V

  • Supply Voltage-Nom:

    12 V

  • Supply Voltage1-Max:

    80 V

  • Supply Voltage1-Min:

    8 V

  • Supply Voltage1-Nom:

    60 V

  • Surface Mount:

    YES

  • Technology:

    HVCMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    QUAD

  • Width:

    10 mm

  • fmax-Min:

    8 MHz

HV5308PG-B-G Frequently Asked Questions (FAQs)

  • Microchip recommends a 4-layer PCB with a solid ground plane, and to keep the high-voltage traces short and away from sensitive analog signals. Additionally, use a common mode choke and ferrite beads to filter out high-frequency noise.
  • Follow the recommended thermal design guidelines, including using a heat sink with a thermal resistance of ≤ 10°C/W, and ensuring good airflow around the device. Also, derate the output current and voltage according to the temperature derating curve in the datasheet.
  • The maximum allowable voltage drop is approximately 1.5V, as specified in the datasheet. Exceeding this limit may affect the device's reliability and performance.
  • Check the OCP threshold setting, ensure the sense resistor is correctly sized, and verify that the OCP pin is properly connected. Also, review the PCB layout to ensure that the sense lines are not noisy or coupled to other signals.
  • Yes, the HV5308PG-B-G is designed for high-reliability applications and meets various industry standards, including AEC-Q100. However, it's essential to follow Microchip's guidelines for designing and testing safety-critical systems.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

HV5308PG-B-G Overview

Use the download button to access the HV5308PG-B-G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HV530, or try a keyword search, such as Display Drivers

About Microchip

Microchip Technology Inc. is a leading manufacturer of microcontrollers and semiconductor devices for a wide range of applications in the aerospace, automotive, consumer electronics, industrial, and medical industries. Alongside a comprehensive product portfolio, Microchip Technology Inc. also provides easy-to-use development tools that enable engineers to create optimal designs quickly with minimal iterations to reduce risk while lowering total system costs to market. Headquartered in Chandler, Arizona, th
