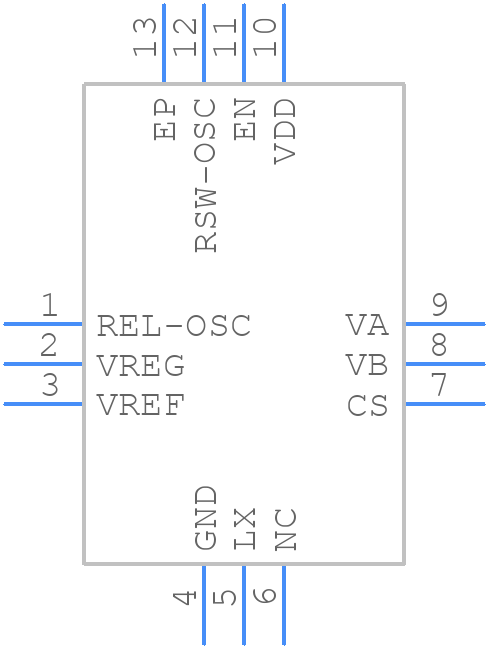

HV860K7-G - Microchip

HV860K7-G Frequently Asked Questions (FAQs)

• What is the recommended PCB layout for optimal performance of the HV860K7-G?
  A good PCB layout for the HV860K7-G involves keeping the high-voltage traces short and away from sensitive analog signals. Use a solid ground plane and decouple the device with a 10uF capacitor. Refer to Microchip's application notes for more details.
• How do I ensure reliable startup and shutdown of the HV860K7-G?
  To ensure reliable startup and shutdown, make sure the input voltage rises and falls monotonically. Add a soft-start circuit to limit the inrush current during startup. Also, ensure the output voltage is fully discharged before shutdown.
• What are the thermal management considerations for the HV860K7-G?
  The HV860K7-G can dissipate up to 2.5W of power. Ensure good airflow around the device, and consider using a heat sink or thermal pad to keep the junction temperature below 125°C. Use thermal simulation tools to optimize your design.
• How do I troubleshoot issues with the HV860K7-G, such as output voltage instability or overheating?
  Use an oscilloscope to monitor the input and output voltages, and check for any signs of oscillation or noise. Verify the PCB layout and component values match the recommended design. Consult Microchip's application notes and technical support resources for further guidance.
• Are there any specific EMI/EMC considerations for the HV860K7-G?
  Yes, the HV860K7-G can generate electromagnetic interference (EMI). Use shielding, filtering, and grounding techniques to minimize EMI. Ensure the PCB layout and component selection comply with relevant EMI/EMC standards and regulations.
