- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for HV9110NG-G
- Part Number HV9110NG-G
- Manufacturer Microchip
- Pin Count 14
- Part Category Integrated Circuit
- Package Category Small Outline Packages
- Footprint Name Small Outline Packages - 14-pin SOIC-2
- Released Date Nov 23, 2018
- Last Modified Date Jun 22, 2023 2:40 AM UTC
- Pinout / Pin List Click Here (Member Only)
HV9110NG-G Details
-
Manufacturer Part Number:
HV9110NG-G
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Pin Count:
14
-
Manufacturer Package Code:
SOIC-14
-
Country Of Origin:
Thailand
-
ECCN Code:
EAR99
-
HTS Code:
8541.29.00.95
-
Factory Lead Time:
6 Weeks
-
Manufacturer:
Microchip Technology Inc
-
YTEOL:
8
HV9110NG-G Frequently Asked Questions (FAQs)
-
A good PCB layout for the HV9110NG-G involves keeping the high-voltage traces short and away from sensitive analog signals. Use a solid ground plane and decouple the device with a 10uF capacitor. Refer to Microchip's application notes for more detailed guidance.
-
To ensure reliable startup and shutdown, make sure the input voltage rises and falls slowly (e.g., 10ms to 100ms). Avoid sudden changes in input voltage, and use a soft-start circuit if necessary. Also, ensure the output capacitor is fully discharged before shutdown.
-
The maximum allowed voltage on the input pin is 450V, but it's recommended to keep it below 420V to ensure reliable operation and minimize stress on the device.
-
Use a fuse or a current-limiting resistor in series with the input voltage to protect against overcurrent. For overvoltage protection, consider adding a voltage-dependent resistor (VDR) or a transient voltage suppressor (TVS) diode across the input pins.
-
The recommended operating temperature range for the HV9110NG-G is -40°C to 125°C. However, the device can tolerate temperatures up to 150°C for short periods during startup or fault conditions.
Trust Checks
Community Provided
System Verified
Community Approved
HV9110NG-G Overview

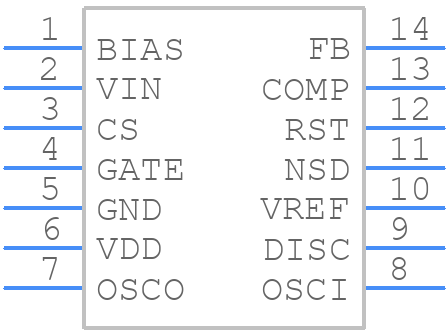

Use the download button to access the HV9110NG-G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HV911,
or try a keyword search, such as Switching Regulator or Controllers
