A good PCB layout for the HV9861ANG-G involves keeping the high-voltage traces short and away from sensitive analog signals, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
To ensure proper power-up and configuration, follow the recommended power-up sequence, connect the VCC pin to a stable 5V power supply, and configure the device using the EN and MODE pins. Also, ensure that the input voltage is within the recommended range and that the device is properly decoupled.
Thermal management is crucial for the HV9861ANG-G. Ensure good airflow around the device, use a heat sink if necessary, and avoid blocking the thermal pad. Also, keep the device away from high-power components and ensure that the PCB is designed to dissipate heat efficiently.
To troubleshoot issues with the HV9861ANG-G, start by checking the power supply and input voltage, then verify the configuration and pin connections. Use an oscilloscope to check the output waveforms and verify that the device is operating within the recommended specifications. Consult the datasheet and application notes for guidance on troubleshooting specific issues.
Yes, the HV9861ANG-G can be susceptible to EMI/EMC issues. To minimize these effects, use a shielded enclosure, keep the device away from high-frequency sources, and use EMI filters or shielding on the input and output lines. Also, ensure that the PCB is designed to minimize radiation and that the device is properly grounded.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
HV9861ANG-G Overview

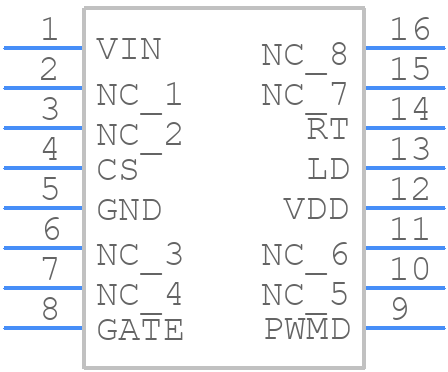

Use the download button to access the HV9861ANG-G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HV986,
or try a keyword search, such as Display Drivers
