HV9961NG-G-M934 - Microchip

Description: LED Driver 1 Segment 16-Pin SOIC N T/R Closed Loop LED Driver with Enhanced PWM Dimming

Download HV9961NG-G-M934 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

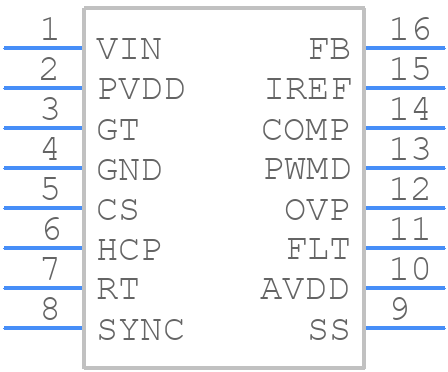

HV9961NG-G-M934 - Microchip - PCB symbol
click to zoom
PCB Footprints
HV9961NG-G-M934 - Microchip PCB footprint - Small Outline Packages - Small Outline Packages - 16-Lead SOIC_1
click to zoom
3D Models
HV9961NG-G-M934 - Microchip - 3D model - Small Outline Packages - 16-Lead SOIC_1
click to zoom

HV9961NG-G-M934 Details

  • Manufacturer Part Number:

    HV9961NG-G-M934

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOP, SOP16,.25

  • Pin Count:

    16

  • Manufacturer Package Code:

    SOIC-16

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.29.00.95

  • Factory Lead Time:

    6 Weeks

  • Date Of Intro:

    2017-11-06

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    13

  • Interface IC Type:

    LED DISPLAY DRIVER

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    9.9 mm

  • Multiplexed Display Capability:

    NO

  • Number of Functions:

    1

  • Number of Segments:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max:

    450 V

  • Supply Voltage-Min:

    8 V

  • Supply Voltage-Nom:

    12 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

HV9961NG-G-M934 Frequently Asked Questions (FAQs)

  • A good PCB layout is crucial for the HV9961NG-G-M934. Ensure a solid ground plane, keep high-voltage traces short and away from low-voltage traces, and use a Kelvin connection for the current sense resistor. Refer to Microchip's application notes and layout guidelines for more information.
  • Choose external components based on the specific application requirements. For example, select a suitable inductor value and type (e.g., shielded or unshielded) considering the output voltage, current, and switching frequency. Refer to the datasheet and application notes for guidance on component selection and calculation.
  • The maximum junction temperature (Tj) for the HV9961NG-G-M934 is 150°C. Ensure proper thermal design and heat dissipation to prevent overheating, which can affect the device's reliability and lifespan.
  • The HV9961NG-G-M934 has a built-in OVP feature. Connect the OVP pin to a voltage divider network that monitors the output voltage. When the output voltage exceeds the set threshold, the OVP pin will trigger the device to shut down. Refer to the datasheet for more information on OVP implementation.
  • The recommended input voltage range for the HV9961NG-G-M934 is 10V to 28V. Operating outside this range may affect the device's performance, efficiency, and reliability.
