HV9967BMG-G - Microchip

Description: LED Lighting Drivers INTEGRATED LED DRV W/ AVG MODE CURRENT

Download HV9967BMG-G Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

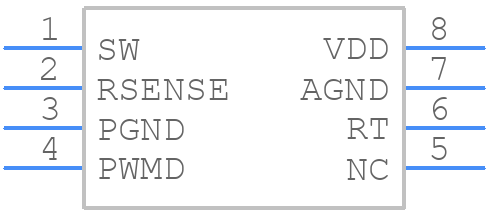

Symbol
HV9967BMG-G - Microchip - PCB symbol
click to zoom
PCB Footprints
HV9967BMG-G - Microchip PCB footprint - Small Outline Packages - Small Outline Packages - 8 Lead MSOP (MG)
click to zoom
3D Models
HV9967BMG-G - Microchip - 3D model - Small Outline Packages - 8 Lead MSOP (MG)
click to zoom

HV9967BMG-G Details

  • Manufacturer Part Number:

    HV9967BMG-G

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    8

  • Manufacturer Package Code:

    MSOP-8

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    13

  • Interface IC Type:

    LED DISPLAY DRIVER

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Multiplexed Display Capability:

    NO

  • Number of Functions:

    1

  • Number of Segments:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP8,.19

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max:

    1 mA

  • Supply Voltage-Max:

    5.25 V

  • Supply Voltage-Min:

    4.75 V

  • Supply Voltage-Nom:

    5 V

  • Supply Voltage1-Max:

    60 V

  • Supply Voltage1-Min:

    8 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    3 mm

HV9967BMG-G Frequently Asked Questions (FAQs)

  • A good PCB layout for the HV9967BMG-G involves keeping the high-voltage traces short and away from sensitive analog signals, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To ensure proper biasing, connect the VCC pin to a stable 5V power supply, and the EN pin to a logic-level signal (e.g., 3.3V or 5V) to enable the device. The VREF pin should be connected to a stable voltage reference (e.g., 2.5V) for accurate voltage regulation.
  • The HV9967BMG-G can deliver up to 1.2A of output current, but this may vary depending on the input voltage, output voltage, and thermal conditions. It's essential to ensure proper thermal management and heat sinking to maintain reliable operation.
  • To protect the HV9967BMG-G from overvoltage and undervoltage conditions, use external voltage monitoring circuits or supervisors to detect and respond to abnormal voltage conditions. Additionally, consider using a voltage regulator with built-in overvoltage protection (OVP) and undervoltage protection (UVP) features.
  • The recommended input capacitor value for the HV9967BMG-G is 10uF to 22uF, with a voltage rating of 10V or higher. A low-ESR capacitor is recommended to minimize voltage ripple and ensure stable operation.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

HV9967BMG-G Overview

Use the download button to access the HV9967BMG-G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HV996, or try a keyword search, such as Display Drivers

About Microchip

Microchip Technology Inc. is a leading manufacturer of microcontrollers and semiconductor devices for a wide range of applications in the aerospace, automotive, consumer electronics, industrial, and medical industries. Alongside a comprehensive product portfolio, Microchip Technology Inc. also provides easy-to-use development tools that enable engineers to create optimal designs quickly with minimal iterations to reduce risk while lowering total system costs to market. Headquartered in Chandler, Arizona, th
