HVDA1040AQDSJRQ1 - Texas Instruments

Description: Automotive Catalog EMC-Optimized CAN Transceiver

Download HVDA1040AQDSJRQ1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

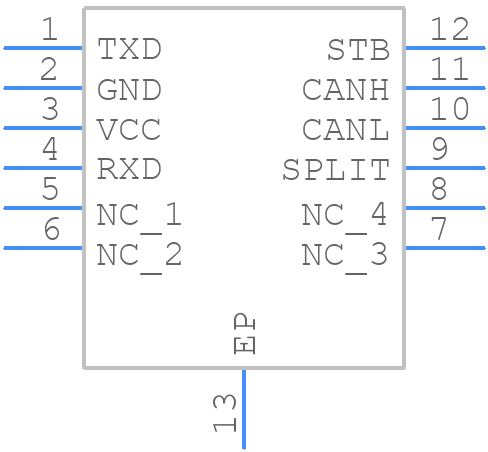

HVDA1040AQDSJRQ1 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
HVDA1040AQDSJRQ1 - Texas Instruments PCB footprint - Small Outline No-lead - Small Outline No-lead - DSJ(R-PVSON-N12)
click to zoom
3D Models
HVDA1040AQDSJRQ1 - Texas Instruments - 3D model - Small Outline No-lead - DSJ(R-PVSON-N12)
click to zoom

HVDA1040AQDSJRQ1 Details

  • Manufacturer Part Number:

    HVDA1040AQDSJRQ1

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SON

  • Pin Count:

    12

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Data Rate:

    1000 Mbps

  • JESD-30 Code:

    R-PDSO-N12

  • JESD-609 Code:

    e4

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    2

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1 mm

  • Supply Current-Max:

    70 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    INTERFACE CIRCUIT

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

HVDA1040AQDSJRQ1 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the analog and digital grounds separate and connect them at a single point. Use a decoupling capacitor (e.g., 0.1uF) close to the device's power pins.
  • Follow the recommended power-up sequence: VDDA, VDD, and then VREF. Ensure VREF is stable before applying an input signal. Configure the device according to the datasheet's recommended settings for the desired application.
  • The maximum input signal amplitude is ±10V, and the maximum frequency is 100 kHz. However, the device can handle higher frequencies with reduced amplitude. Consult the datasheet's frequency response graphs for more information.
  • Use a low-noise power supply, and decouple the power pins with capacitors. Keep the input signal traces short and away from digital lines. Use a shielded cable for the input signal, and consider adding a common-mode filter or a ferrite bead to reduce EMI.
  • The typical output impedance is around 100 ohms. This impedance can affect the output signal, especially at higher frequencies. Consider adding an output buffer or a voltage follower to reduce the output impedance and improve signal integrity.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

HVDA1040AQDSJRQ1 Overview

Use the download button to access the HVDA1040AQDSJRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HVDA1, or try a keyword search, such as Network Interfaces

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
