HVLED001ATR - STMicroelectronics

Description: LED Lighting Drivers Offline controller for LED lighting constant volt primary-sensing & high power f

Download HVLED001ATR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

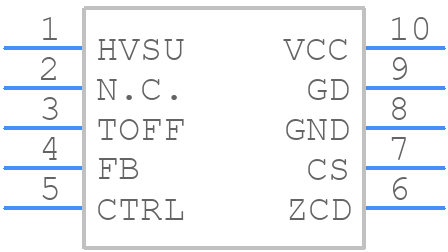

HVLED001ATR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
HVLED001ATR - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - SSO10
click to zoom
3D Models
HVLED001ATR - STMicroelectronics - 3D model - Small Outline Packages - SSO10
click to zoom

HVLED001ATR Details

  • Manufacturer Part Number:

    HVLED001ATR

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SSOP-10

  • Manufacturer Package Code:

    SSOP 10

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    20 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    7.89

  • Additional Feature:

    in low consumption mode vin minimum is 8.8

  • Data Input Mode:

    SERIAL

  • Input Characteristics:

    STANDARD

  • Interface IC Type:

    LED DISPLAY DRIVER

  • JESD-30 Code:

    R-PDSO-G10

  • JESD-609 Code:

    e4

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    3

  • Multiplexed Display Capability:

    NO

  • Number of Functions:

    1

  • Number of Segments:

    2

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SOP10,.25,40

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max:

    3.15 mA

  • Supply Voltage-Max:

    16.5 V

  • Supply Voltage-Min:

    2.2 V

  • Supply Voltage-Nom:

    15 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1 mm

  • Terminal Position:

    DUAL

  • Width:

    3.9 mm

HVLED001ATR Frequently Asked Questions (FAQs)

  • A good PCB layout for HVLED001ATR involves keeping the high-voltage traces short and away from sensitive analog signals. Use a solid ground plane and keep the high-voltage traces on the top layer. Avoid using vias under the IC and keep the decoupling capacitors close to the IC.
  • To ensure reliability in high-temperature applications, ensure that the IC is operated within its recommended temperature range (up to 125°C). Use a suitable thermal interface material and a heat sink if necessary. Also, follow the recommended derating guidelines for the IC's output current and voltage.
  • The recommended input capacitor value for HVLED001ATR is 1-10 μF, depending on the input voltage and output current requirements. A larger capacitor value can help reduce input voltage ripple, but may increase the startup time.
  • If HVLED001ATR is not turning on, check the input voltage and ensure it's within the recommended range. Verify that the enable pin is properly connected and the input capacitor is correctly sized. Also, check for any short circuits or overvoltage conditions that may be preventing the IC from turning on.
  • Yes, HVLED001ATR can be used in a dimmable LED driver application. The IC's PWM input allows for dimming control. However, ensure that the dimming frequency is within the recommended range (up to 1 kHz) and the IC's output current is within the recommended range.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

HVLED001ATR Overview

Use the download button to access the HVLED001ATR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HVLED, or try a keyword search, such as Display Drivers
