HVLED001BTR - STMicroelectronics

Description: STMICROELECTRONICS - HVLED001BTR - LED Driver AC/DC, Buck-Boost, Flyback, SEPIC, 6.3V to 18V Input, 18V/1.2A Output,1 Output, SSOP-10

Download HVLED001BTR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

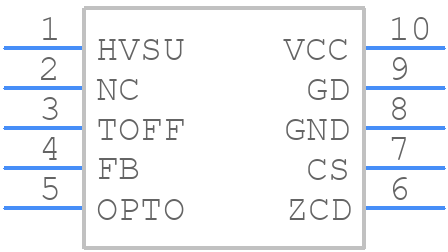

HVLED001BTR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
HVLED001BTR - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - SSOP10
click to zoom
3D Models
HVLED001BTR - STMicroelectronics - 3D model - Small Outline Packages - SSOP10
click to zoom

HVLED001BTR Details

  • Manufacturer Part Number:

    HVLED001BTR

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    20 Weeks

  • Date Of Intro:

    2018-09-07

  • Manufacturer:

    STMicroelectronics

HVLED001BTR Frequently Asked Questions (FAQs)

  • A good PCB layout for HVLED001BTR involves keeping the high-voltage traces short and away from sensitive analog signals, using a solid ground plane, and placing the device close to the LED to minimize inductance.
  • Proper thermal management for HVLED001BTR involves attaching the device to a heat sink or a metal pad on the PCB, ensuring good thermal conductivity, and keeping the device away from other heat sources.
  • The maximum LED current that can be driven by HVLED001BTR is 1.5A, but this can be limited by the external resistor value and the voltage supply.
  • Yes, HVLED001BTR can be used with multiple LEDs in series, but the total voltage drop across the LEDs must not exceed the maximum voltage rating of the device (up to 40V).
  • The brightness of the LED can be adjusted by changing the value of the external resistor (RSET) or by using a PWM signal to modulate the LED current.
