HVLED002 - STMicroelectronics

Description: High performance current mode LED controller

Download HVLED002 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

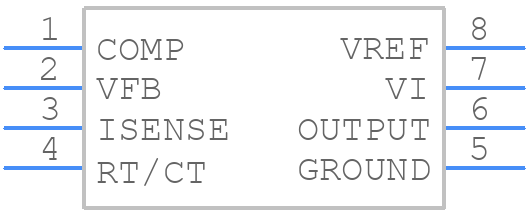

Symbol
HVLED002 - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
HVLED002 - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - SO 8_*-*-
click to zoom
3D Models
HVLED002 - STMicroelectronics - 3D model - Small Outline Packages - SO 8_*-*-
click to zoom

HVLED002 Details

  • Manufacturer Part Number:

    HVLED002

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOP-8

  • Country Of Origin:

    Morocco

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    20 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    7.89

  • Data Input Mode:

    SERIAL

  • Input Characteristics:

    SCHMITT TRIGGER

  • Interface IC Type:

    LED DISPLAY DRIVER

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Multiplexed Display Capability:

    NO

  • Number of Functions:

    1

  • Number of Segments:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Output Characteristics:

    TOTEM-POLE

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max:

    17 mA

  • Supply Voltage-Max:

    25 V

  • Supply Voltage-Min:

    12 V

  • Supply Voltage-Nom:

    15 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    3.9 mm

  • fmax-Min:

    0.5 MHz

HVLED002 Frequently Asked Questions (FAQs)

  • STMicroelectronics recommends a 4-layer PCB with a dedicated power plane, a ground plane, and separate signal layers to minimize noise and ensure proper signal integrity. A good layout should also consider thermal management and provide adequate heat dissipation paths.
  • The HVLED002 requires a bias voltage between 4.5V and 5.5V. Ensure that the bias voltage is stable and within the recommended range. Additionally, the bias current should be limited to 10mA to prevent overheating and damage to the device.
  • The HVLED002 is rated for operation between -40°C and 125°C. However, it's recommended to operate the device within a temperature range of 0°C to 85°C for optimal performance and reliability.
  • Handle the HVLED002 with care to prevent ESD damage. Use an ESD wrist strap or mat, and ensure that the device is stored in an ESD-safe environment. Additionally, use ESD protection devices such as TVS diodes or ESD protection arrays in the circuit design.
  • STMicroelectronics recommends a soldering profile with a peak temperature of 260°C and a dwell time of 30 seconds. Ensure that the soldering process is done in a nitrogen atmosphere to prevent oxidation and ensure reliable connections.
