HVLED805 - STMicroelectronics

Description: STMicroelectronics HVLED805, LED Driver, 11.5 → 23 V, 16-Pin SOIC

Download HVLED805 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

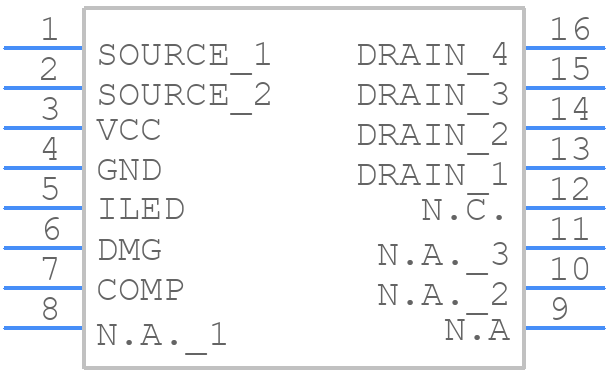

Symbol
HVLED805 - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
HVLED805 - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - SO-16N
click to zoom
3D Models
HVLED805 - STMicroelectronics - 3D model - Small Outline Packages - SO-16N
click to zoom

HVLED805 Details

  • Manufacturer Part Number:

    HVLED805

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    ROHS COMPLIANT, SOP-16

  • Pin Count:

    16

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Data Input Mode:

    SERIAL

  • Input Characteristics:

    STANDARD

  • Interface IC Type:

    LED DISPLAY DRIVER

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e4

  • Length:

    9.9 mm

  • Moisture Sensitivity Level:

    3

  • Multiplexed Display Capability:

    NO

  • Number of Functions:

    1

  • Number of Segments:

    3

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    CONSTANT-CURRENT

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max:

    1.7 mA

  • Supply Voltage-Max:

    23 V

  • Supply Voltage-Min:

    11.5 V

  • Supply Voltage-Nom:

    14 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

HVLED805 Frequently Asked Questions (FAQs)

  • STMicroelectronics recommends a layout with a solid ground plane, short traces, and a decoupling capacitor (e.g., 100nF) close to the HVLED805 to minimize noise and ensure stable operation.
  • The choice of external components depends on the specific application and requirements. STMicroelectronics provides a reference design and calculation tools to help select the optimal components. Additionally, the datasheet provides guidelines for component selection.
  • The HVLED805 is rated for operation from -40°C to 125°C. However, the device's performance and reliability may degrade at extreme temperatures. It's essential to consider the specific application's temperature requirements and ensure proper thermal management.
  • The HVLED805 is not designed for use in high-humidity environments. It's essential to follow proper moisture sensitivity level (MSL) handling and storage procedures to prevent damage. If high humidity is a concern, consider using a moisture-resistant package or applying conformal coating.
  • To ensure EMC, follow proper PCB layout and design guidelines, use a shielded enclosure, and consider adding EMI filters or ferrite beads to the circuit. STMicroelectronics provides EMC-related information and guidelines in the datasheet and application notes.
