HVLED805TR - STMicroelectronics

Description: Off-line LED driver with primary-sensing up to 5W

Download HVLED805TR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

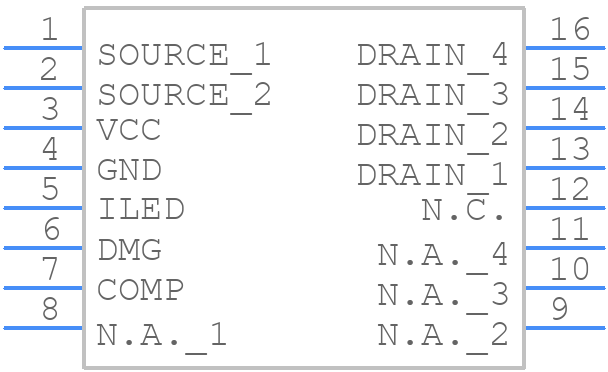

HVLED805TR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
HVLED805TR - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - SO-16N
click to zoom
3D Models
HVLED805TR - STMicroelectronics - 3D model - Small Outline Packages - SO-16N
click to zoom

HVLED805TR Details

  • Manufacturer Part Number:

    HVLED805TR

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    ROHS COMPLIANT, SOP-16

  • Pin Count:

    16

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    7.89

  • Data Input Mode:

    SERIAL

  • Input Characteristics:

    STANDARD

  • Interface IC Type:

    LED DISPLAY DRIVER

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e4

  • Length:

    9.9 mm

  • Moisture Sensitivity Level:

    3

  • Multiplexed Display Capability:

    NO

  • Number of Functions:

    1

  • Number of Segments:

    3

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    CONSTANT-CURRENT

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max:

    1.7 mA

  • Supply Voltage-Max:

    23 V

  • Supply Voltage-Min:

    11.5 V

  • Supply Voltage-Nom:

    14 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    3.9 mm

HVLED805TR Frequently Asked Questions (FAQs)

  • STMicroelectronics recommends a PCB layout with a large copper area connected to the thermal pad of the HVLED805TR to dissipate heat efficiently. A minimum of 2oz copper thickness and a thermal via array under the device are also recommended.
  • The HVLED805TR requires a bias voltage of 12V to 15V on the VCC pin, and a bias current of 10mA to 20mA on the IBIAS pin. Ensure that the bias voltage and current are within the recommended range to achieve optimal performance.
  • The maximum allowable voltage on the output pins of HVLED805TR is 80V. Exceeding this voltage may damage the device.
  • Yes, HVLED805TR is rated for operation up to 150°C. However, the device's performance and reliability may degrade at high temperatures. Ensure that the device is properly cooled and the operating temperature is within the recommended range.
  • Check the input voltage, bias voltage, and bias current to ensure they are within the recommended range. Verify that the PCB layout is correct and the device is properly cooled. Use an oscilloscope to check the output voltage waveform and ensure it is not oscillating or distorted.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

HVLED805TR Overview

Use the download button to access the HVLED805TR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HVLED, or try a keyword search, such as Display Drivers
