HX50-P Frequently Asked Questions (FAQs)

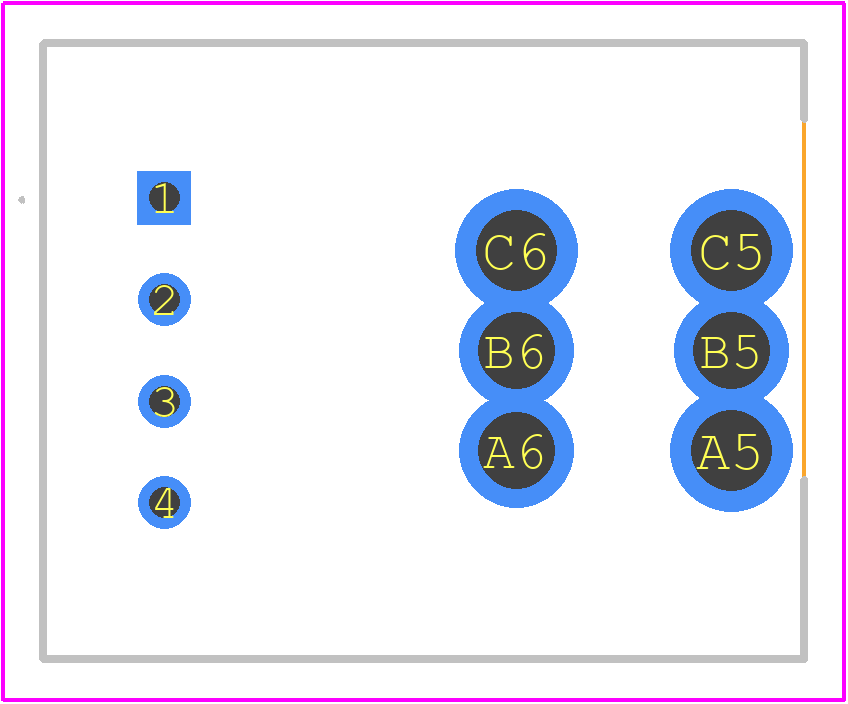

• What is the recommended PCB layout for optimal performance?
  LEM recommends a symmetrical PCB layout with the sensor placed in the middle, and the primary conductor (e.g., a wire or a busbar) passing through the sensor's aperture. This layout helps to minimize external interference and ensures accurate current measurements.
• How does the HX50-P handle overcurrent conditions?
  The HX50-P is designed to withstand overcurrent conditions up to 10 times the nominal current rating for a short duration (typically 1 second). However, prolonged exposure to overcurrents can affect the sensor's accuracy and lifespan. It's essential to implement overcurrent protection mechanisms in the system design.
• What is the typical response time of the HX50-P?
  The response time of the HX50-P is typically around 2-3 microseconds, making it suitable for high-frequency current measurements. However, the actual response time may vary depending on the system's bandwidth and the specific application.
• Can the HX50-P be used in high-temperature environments?
  The HX50-P is rated for operation up to 125°C (257°F). However, the sensor's accuracy and lifespan may be affected at high temperatures. It's essential to consider the temperature derating factors and ensure proper thermal management in the system design.
• How does the HX50-P handle electromagnetic interference (EMI)?
  The HX50-P is designed to be immune to EMI, with a high common-mode rejection ratio (CMRR) and a shielded aperture to minimize electromagnetic interference. However, it's still important to follow proper PCB layout and shielding practices to ensure optimal performance.
