HX711 - AVIA

Description: 24-Bit Analog-to-Digital Converter (ADC) for Weigh Scale

Download HX711 Model

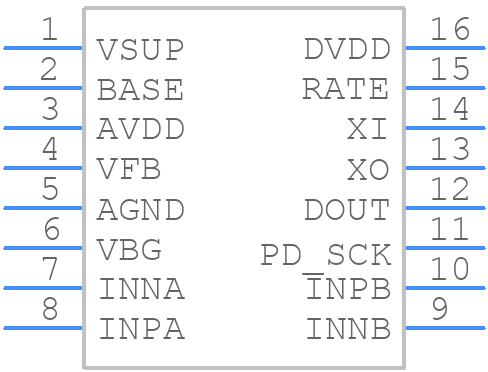

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
HX711 - AVIA PCB footprint - Small Outline Packages - Small Outline Packages - SOP-16L Package
click to zoom
3D Models
HX711 - AVIA  - 3D model - Small Outline Packages - SOP-16L Package
click to zoom

HX711 Details

  • Manufacturer Part Number:

    HX711

  • Part Life Cycle Code:

    Contact Manufacturer

  • Package Description:

    SOP-16

  • HTS Code:

    8542.39.00.30

  • Manufacturer:

    Avia Semiconductor

  • Analog Input Voltage-Max:

    2.5 V

  • Analog Input Voltage-Min:

    -2.5 V

  • Converter Type:

    ADC, DELTA-SIGMA

  • JESD-30 Code:

    R-PDSO-G16

  • Length:

    9.9 mm

  • Number of Analog In Channels:

    2

  • Number of Bits:

    24

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    2'S COMPLEMENT BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    3.9 mm

HX711 Frequently Asked Questions (FAQs)

  • The recommended power-on sequence is to apply VCC first, followed by AVDD, and then finally AVSS. This ensures that the internal analog circuitry is properly biased before the digital circuitry is powered on.
  • When the input voltage is close to the power supply rails, the HX711's analog output may saturate or clip. To handle this, you can use an external voltage limiter or clamp circuit to prevent the input voltage from exceeding the power supply rails.
  • The internal oscillator is used to generate the clock signal for the HX711's analog-to-digital converter (ADC). While it is possible to use an external clock source, it is not recommended as it may affect the ADC's performance and accuracy. The internal oscillator is optimized for the HX711's ADC and provides the best performance.
  • To calibrate the HX711, you need to perform a two-point calibration: one at zero load and one at a known load. This involves applying a known weight to the load cell and adjusting the HX711's gain and offset registers to match the expected output. You may also need to perform temperature compensation and adjust for non-linearity errors.
  • The maximum sampling rate of the HX711 is 80 Hz. The sampling rate affects the measurement accuracy, as higher sampling rates can reduce the noise and increase the resolution of the measurement. However, increasing the sampling rate also increases the power consumption and may affect the ADC's performance.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

HX711 Overview

Use the download button to access the HX711 schematic symbol, PCB footprint, and 3D model.
