i7A4W033A033V-0C1-R - TDK Lambda

Description: DC-DC Converters, PCB mount type, Output: 500W, wide range (3.3 to 24V), Non-Isolated Step-down

Download i7A4W033A033V-0C1-R Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

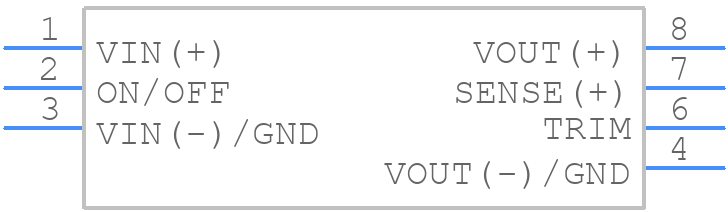

Symbol
i7A4W033A033V-0C1-R - TDK Lambda - PCB symbol
click to zoom

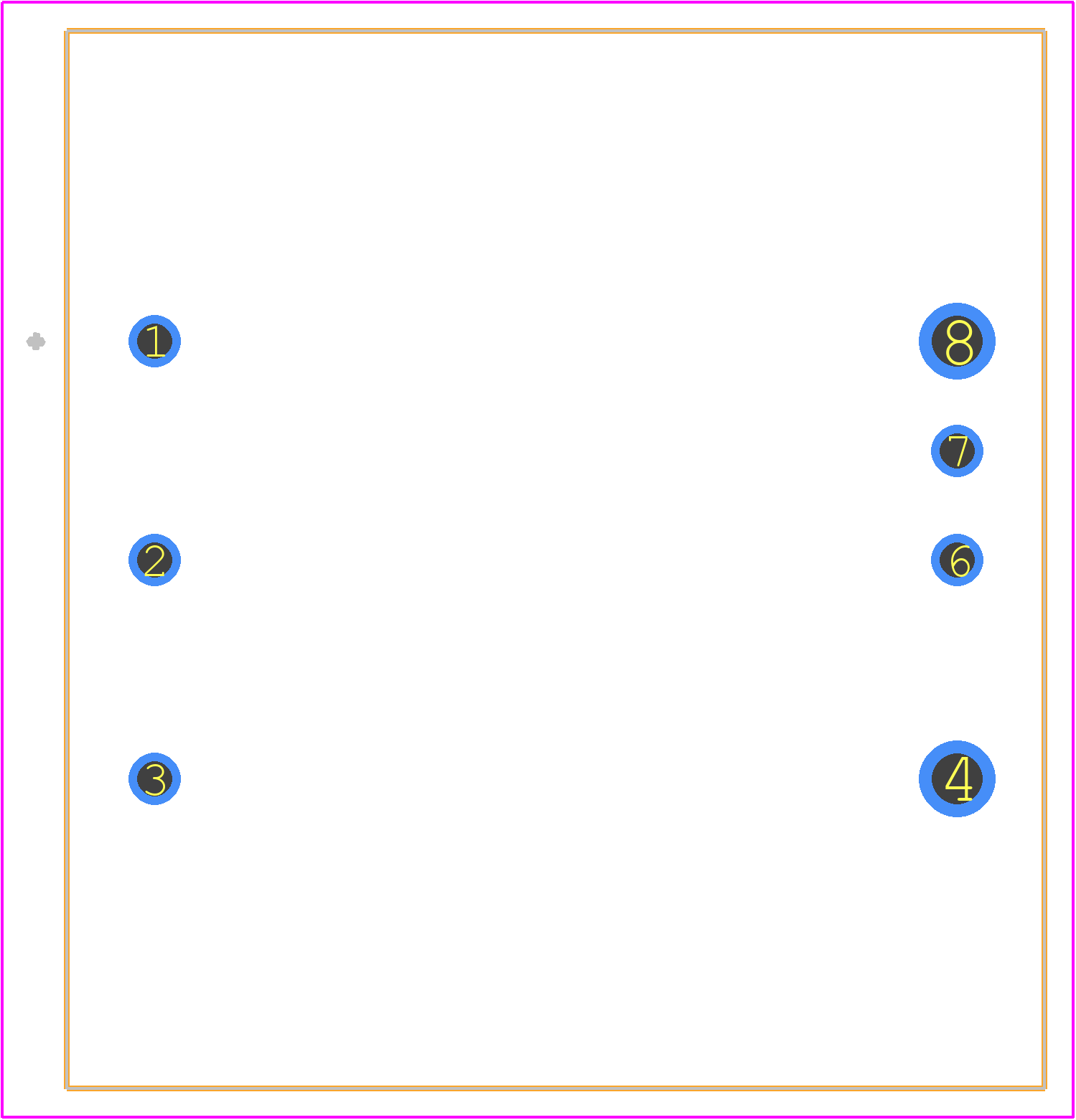

PCB Footprints
i7A4W033A033V-0C1-R - TDK Lambda PCB footprint - Other - Other - I7A4W033A033V-0C1-R-1
click to zoom
3D Models
i7A4W033A033V-0C1-R - TDK Lambda - 3D model - Other - I7A4W033A033V-0C1-R-1
click to zoom

i7A4W033A033V-0C1-R Details

  • Manufacturer Part Number:

    I7A4W033A033V-0C1-R

  • Part Life Cycle Code:

    Transferred

  • Package Description:

    PACKAGE-8/7

  • ECCN Code:

    EAR99

  • Manufacturer:

    TDK-Lambda Corporation

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Control Mode:

    VOLTAGE-MODE

  • Efficiency (Main Output):

    98%

  • Input Voltage-Max:

    60 V

  • Input Voltage-Min:

    18 V

  • JESD-30 Code:

    R-XXMA-P7

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    7

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    33 A

  • Output Voltage-Max:

    24 V

  • Output Voltage-Min:

    3.3 V

  • Output Voltage-Nom:

    3.3 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    XMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Protections:

    OVER CURRENT; OVER TEMPERATURE

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Form:

    PIN/PEG

  • Terminal Position:

    UNSPECIFIED

  • Total Power Output-Max:

    500 W

  • Trim/Adjustable Output:

    YES

i7A4W033A033V-0C1-R Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the I7A4W033A033V-0C1-R is -40°C to +85°C, with a derating of 2.5% per °C above 60°C.
  • The I7A4W033A033V-0C1-R requires a minimum airflow of 1m/s to ensure proper cooling. It is recommended to mount the module vertically to allow for natural convection cooling.
  • The recommended input voltage range for the I7A4W033A033V-0C1-R is 36V to 75V DC, with a nominal input voltage of 48V DC.
  • The I7A4W033A033V-0C1-R is designed to operate in a relative humidity range of 5% to 95% non-condensing. However, it is recommended to take precautions to prevent moisture ingress in high-humidity environments.
  • The MTBF rating for the I7A4W033A033V-0C1-R is 1,500,000 hours at 25°C, calculated according to MIL-HDBK-217F.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

i7A4W033A033V-0C1-R Overview

Use the download button to access the i7A4W033A033V-0C1-R schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like i7A4W, or try a keyword search, such as Power Supply Modules
