TDK-Lambda recommends a PCB layout with a solid ground plane, minimal thermal resistance, and adequate clearance around the module for airflow. A thermal interface material (TIM) should be used between the module and heat sink. Refer to the application note for detailed guidelines.
To ensure EMC, follow proper PCB design and layout practices, use a metal enclosure, and add EMI filters or shielding as needed. The I7C4W012A050V-003-R is designed to meet CISPR 22 Class B emissions, but system-level testing may still be required.
The derating curve is not explicitly provided in the datasheet, but TDK-Lambda recommends derating the output power by 2.5% per degree Celsius above 40°C to ensure reliable operation. Consult with TDK-Lambda's application engineers for specific guidance.
Yes, the I7C4W012A050V-003-R can be used in redundant or parallel configurations, but additional circuitry and control logic may be required to ensure proper operation and fault tolerance. Consult with TDK-Lambda's application engineers for specific guidance.
The MTBF and FIT rate are not explicitly provided in the datasheet, but TDK-Lambda can provide this information upon request. The MTBF is typically calculated based on MIL-HDBK-217F or Telcordia SR-332 standards.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
i7C4W012A050V-003-R Overview

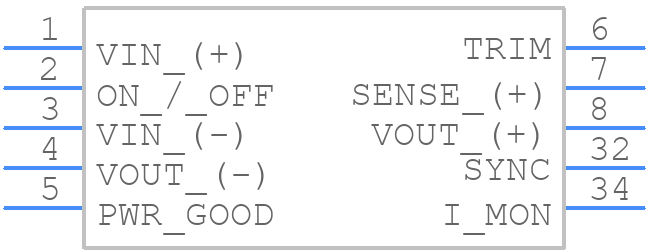

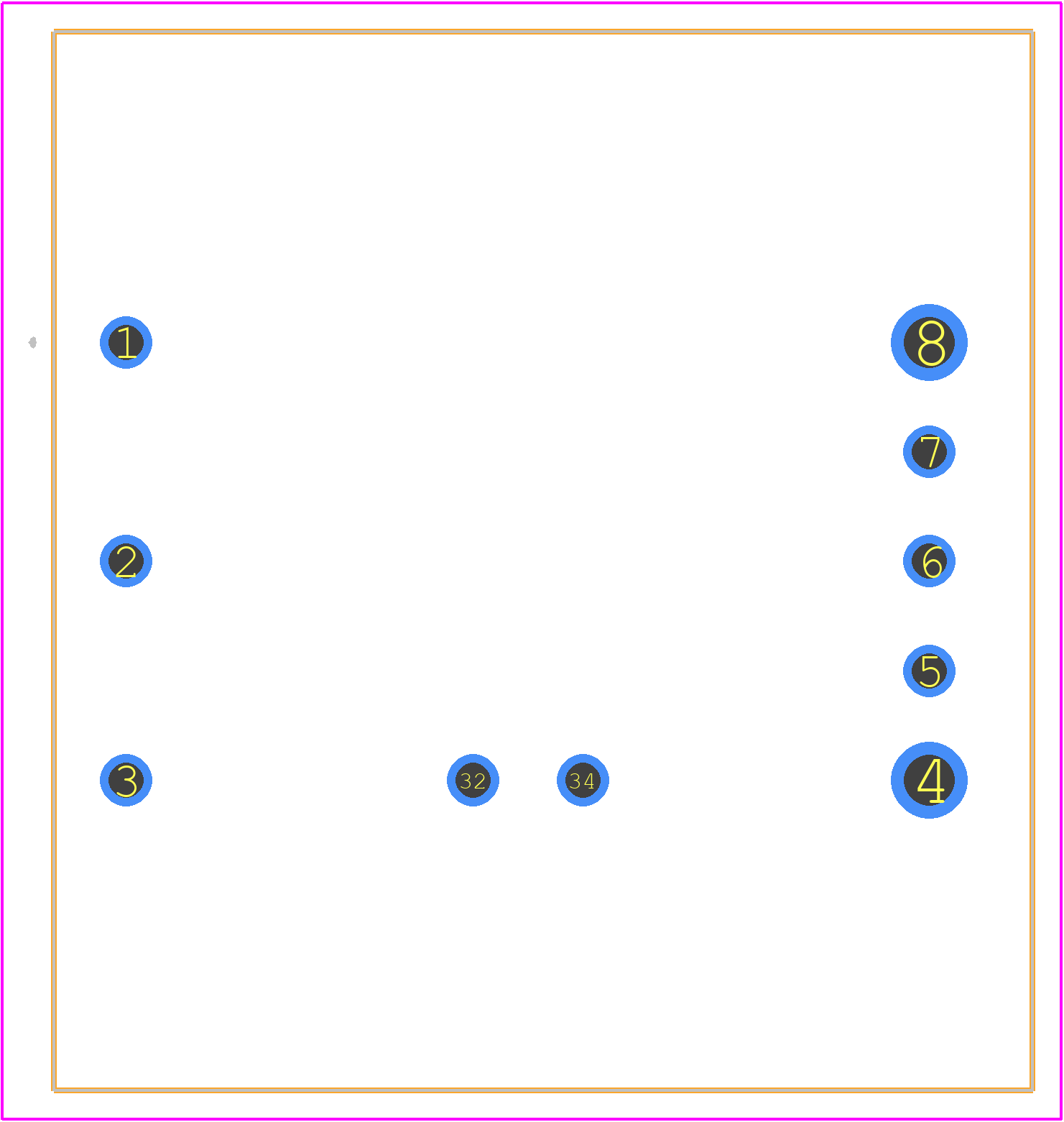

Use the download button to access the i7C4W012A050V-003-R schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like i7C4W,
or try a keyword search, such as Power Supply Modules
