IA186EB-PQF80I - Analog Devices

IA186EB-PQF80I Details

• Manufacturer Part Number:

  IA186EB-PQF80I

• Part Life Cycle Code:

  Obsolete

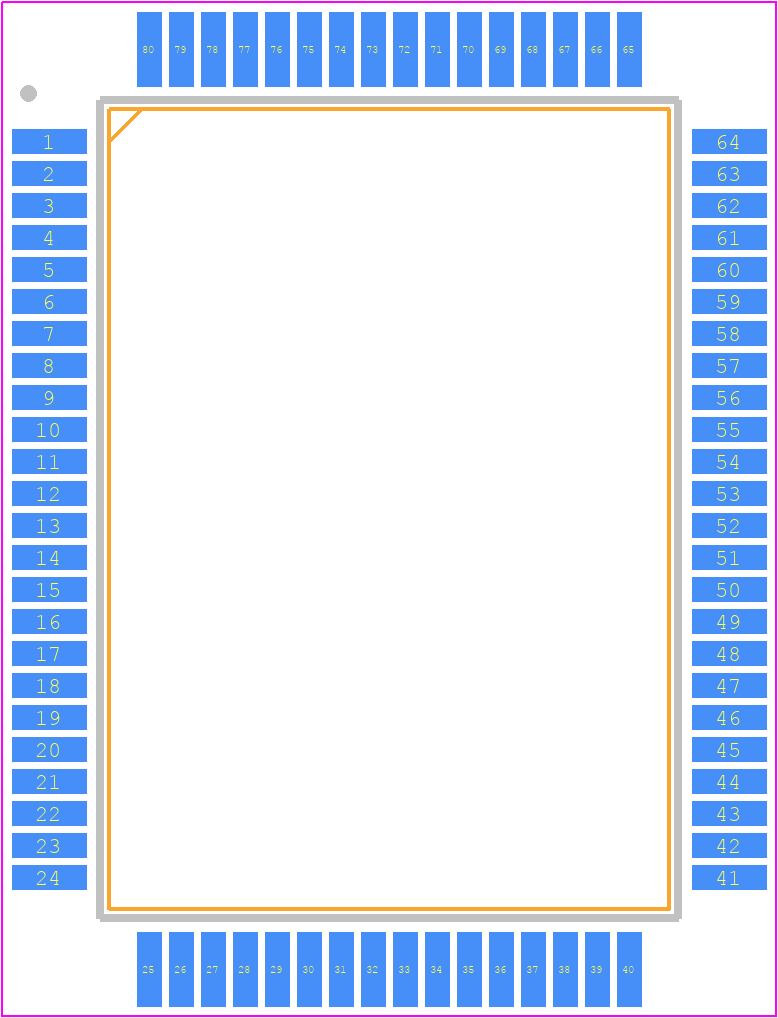

• Package Description:

  QFP-80

• HTS Code:

  8542.31.00.15

• Manufacturer:

  Analog Devices Inc

• YTEOL:

  0

• Has ADC:

  NO

• Address Bus Width:

  20

• Bit Size:

  8

• Boundary Scan:

  NO

• CPU Family:

  8086

• DAC Channels:

  NO

• DMA Channels:

  NO

• Integrated Cache:

  NO

• JESD-30 Code:

  R-PQFP-G80

• Length:

  20 mm

• Low Power Mode:

  YES

• Number of I/O Lines:

  16

• Number of Terminals:

  80

• Number of Timers:

  3

• On Chip Data RAM Width:

  8

• On Chip Program ROM Width:

  8

• PWM Channels:

  NO

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  QFP

• Package Equivalence Code:

  QFP80,.7X.9,32

• Package Shape:

  RECTANGULAR

• Package Style:

  FLATPACK

• RAM (bytes):

  1048576

• RAM (words):

  524288

• ROM (words):

  2

• Seated Height-Max:

  3.15 mm

• Speed:

  50 MHz

• Supply Current-Max:

  115 mA

• Supply Voltage-Max:

  5.5 V

• Supply Voltage-Min:

  4.5 V

• Supply Voltage-Nom:

  5 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.8 mm

• Terminal Position:

  QUAD

• Width:

  14 mm

• uPs/uCs/Peripheral ICs Type:

  MICROCONTROLLER
