IA186EBPQF80IR2 - Analog Devices

Description: 8-bit Microcontrollers - MCU FS70AB037AH - Repl for Intel 80C186EB

Download IA186EBPQF80IR2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
IA186EBPQF80IR2 - Analog Devices - PCB symbol
click to zoom
PCB Footprints

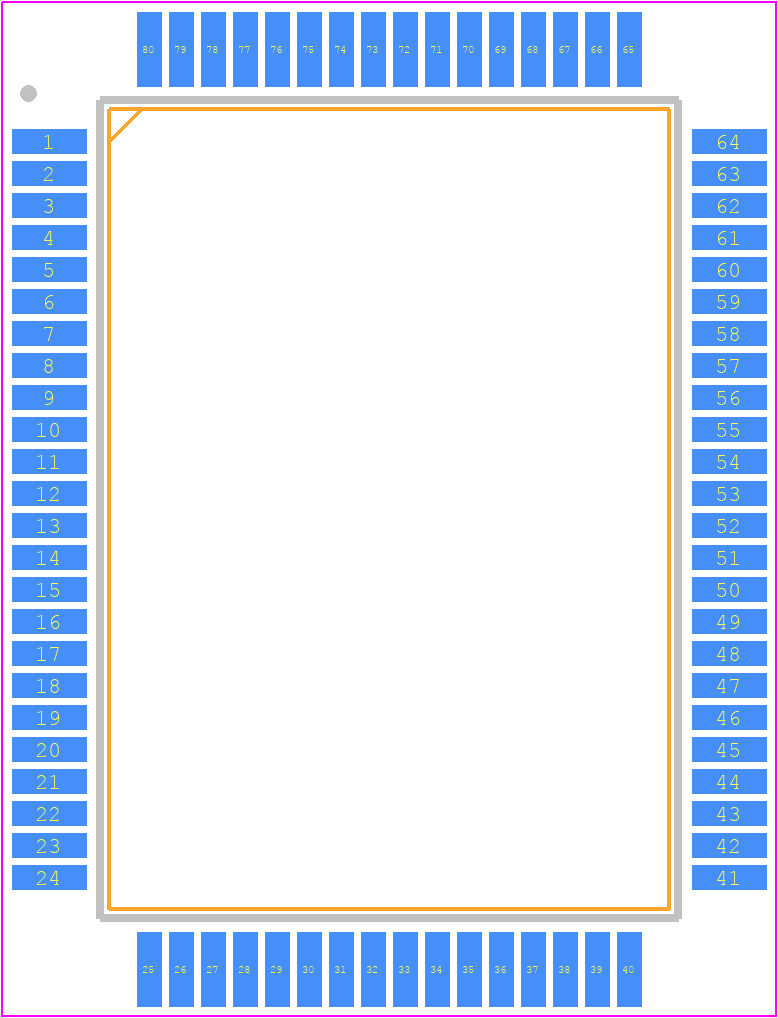

IA186EBPQF80IR2 - Analog Devices PCB footprint - Quad Flat Packages - Quad Flat Packages - 80-Pin PQFP_2024
click to zoom
3D Models
IA186EBPQF80IR2 - Analog Devices - 3D model - Quad Flat Packages - 80-Pin PQFP_2024
click to zoom

IA186EBPQF80IR2 Details

  • Manufacturer Part Number:

    IA186EBPQF80IR2

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    ROHS COMPLIANT, PLASTIC, QFP-80

  • ECCN Code:

    3A991.a.2

  • HTS Code:

    8542.31.00.20

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Has ADC:

    NO

  • Additional Feature:

    ALSO OPERATES 3.3 V @ 32 MHZ

  • Address Bus Width:

    20

  • Bit Size:

    16

  • Clock Frequency-Max:

    50 MHz

  • DAC Channels:

    NO

  • DMA Channels:

    NO

  • External Data Bus Width:

    16

  • JESD-30 Code:

    R-PQFP-G80

  • Length:

    20 mm

  • Number of I/O Lines:

    16

  • Number of Terminals:

    80

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • PWM Channels:

    NO

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LQFP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLATPACK, LOW PROFILE

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Seated Height-Max:

    3.4 mm

  • Speed:

    50 MHz

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    14 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER

IA186EBPQF80IR2 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the analog and digital sections separate, and use a star-grounding scheme to minimize noise.
  • Follow the calibration procedure outlined in the datasheet, which involves applying a known input signal and adjusting the internal calibration registers. It's also recommended to recalibrate the device periodically to maintain accuracy.
  • The power supply lines should be decoupled with capacitors and kept below 10mV of noise to ensure reliable operation. It's also recommended to use a low-dropout regulator to minimize power supply noise.
  • The IA186EBPQF80IR2 is rated for operation up to 125°C, but the accuracy and reliability may degrade above 100°C. It's recommended to derate the device's performance and consider additional cooling measures in high-temperature environments.
  • Check the power supply voltage, clock frequency, and input signal integrity. Verify that the device is properly configured and calibrated. Use the device's built-in diagnostic features, such as the internal ADC test mode, to isolate the issue.
