IA186ESPQF100IR03 footprint, schematic symbol and 3D model by Analog Devices

Symbol

click to zoom

PCB Footprints

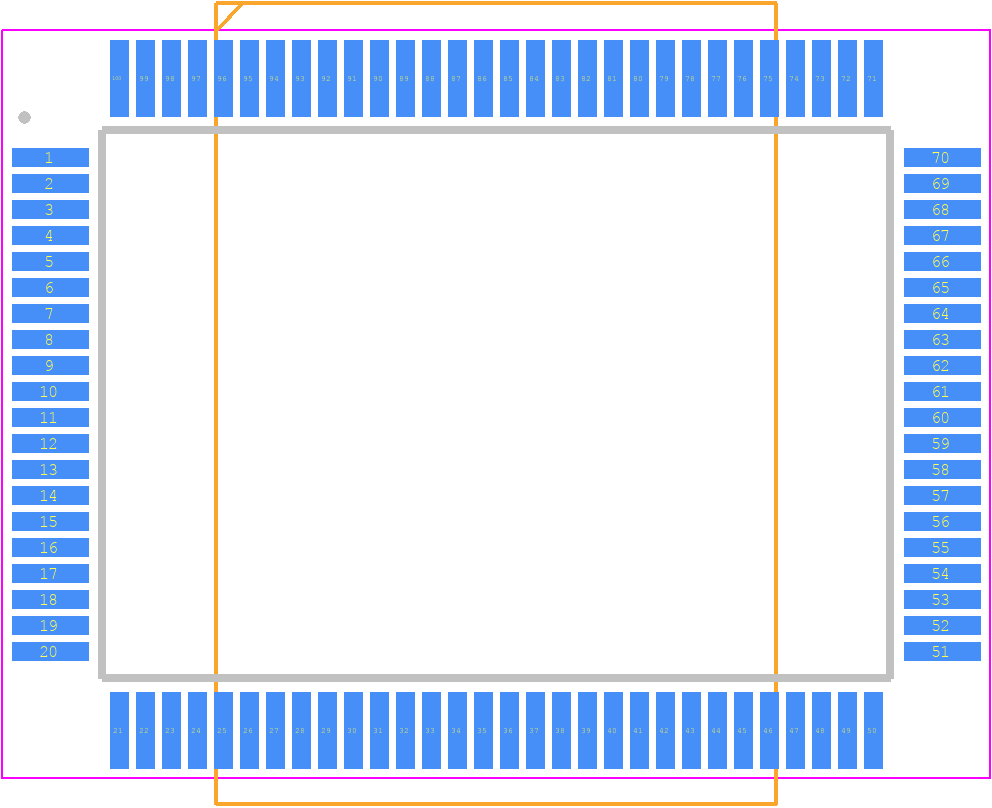

IA186ESPQF100IR03 - Analog Devices PCB footprint - Quad Flat Packages - Quad Flat Packages - pqfp100

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for IA186ESPQF100IR03
Part Number IA186ESPQF100IR03
Manufacturer Analog Devices
Pin Count 100
Part Category Integrated Circuit
Package Category Quad Flat Packages
Footprint Name Quad Flat Packages - pqfp100
Released Date Mar 29, 2020
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

IA186ESPQF100IR03 Details

Manufacturer Part Number:
IA186ESPQF100IR03
Rohs Code:
Yes
Part Life Cycle Code:
Obsolete
Package Description:
QFP-100
HTS Code:
8542.31.00.20
Manufacturer:
Analog Devices Inc
YTEOL:
0
Has ADC:
NO
Address Bus Width:
20
Bit Size:
16
DAC Channels:
NO
DMA Channels:
YES
External Data Bus Width:
16
JESD-30 Code:
R-PQFP-G100
JESD-609 Code:
e3
Length:
20 mm
Number of I/O Lines:
32
Number of Terminals:
100
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
PWM Channels:
NO
Package Body Material:
PLASTIC/EPOXY
Package Code:
QFP
Package Shape:
RECTANGULAR
Package Style:
FLATPACK
ROM Programmability:
MROM
Seated Height-Max:
3.4 mm
Speed:
40 MHz
Supply Voltage-Max:
5.5 V
Supply Voltage-Min:
4.5 V
Supply Voltage-Nom:
5 V
Surface Mount:
YES
Technology:
CMOS
Temperature Grade:
INDUSTRIAL
Terminal Finish:
Tin (Sn)
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
QUAD
Width:
14 mm
uPs/uCs/Peripheral ICs Type:
MICROCONTROLLER

IA186ESPQF100IR03 Frequently Asked Questions (FAQs)

A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the analog and digital sections separate, and use a star-grounding scheme to minimize noise.
Follow the calibration procedure outlined in the datasheet, which involves applying a known input signal and adjusting the internal calibration registers. It's also recommended to perform periodic recalibration to maintain accuracy.
The power supply lines should be decoupled with 10uF capacitors and the noise level should be kept below 10mV peak-to-peak to ensure reliable operation.
The IA186ESPQF100IR03 is rated for operation up to 125°C, but the accuracy and reliability may degrade at higher temperatures. It's recommended to derate the device's performance and consider additional cooling measures for high-temperature applications.
Check the power supply voltage, clock frequency, and communication protocol settings. Verify that the device is properly configured and calibrated. Use a logic analyzer or oscilloscope to debug the communication signals and identify any errors.
