iAH12040A007V-007-R - TDK Lambda

Description: DC-DC Converters, On-board type, Output: 150W, 0.7V, Non-Isolated type

Download iAH12040A007V-007-R Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

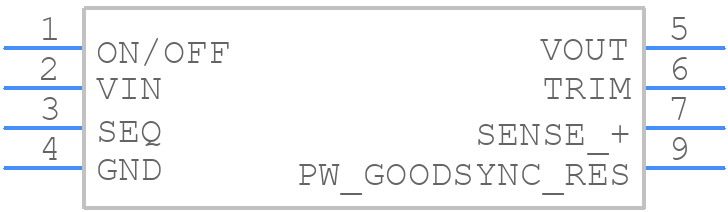

iAH12040A007V-007-R - TDK Lambda - PCB symbol
click to zoom
PCB Footprints
iAH12040A007V-007-R - TDK Lambda PCB footprint - Other - Other - iAH12040A007V-007-R
click to zoom
3D Models
iAH12040A007V-007-R - TDK Lambda - 3D model - Other - iAH12040A007V-007-R
click to zoom

iAH12040A007V-007-R Details

  • Manufacturer Part Number:

    IAH12040A007V-007-R

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • Package Description:

    PACKAGE-10

  • ECCN Code:

    EAR99

  • Manufacturer:

    TDK-Lambda Corporation

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Input Voltage-Max:

    17 V

  • Input Voltage-Min:

    3.5 V

  • JESD-30 Code:

    R-XXMA-X10

  • Length:

    33 mm

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    10

  • Output Voltage-Max:

    5.5 V

  • Output Voltage-Min:

    0.7 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    XMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Seated Height-Max:

    10.7 mm

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Terminal Form:

    UNSPECIFIED

  • Terminal Position:

    UNSPECIFIED

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Total Power Output-Max:

    150 W

  • Trim/Adjustable Output:

    YES

  • Width:

    13.5 mm

iAH12040A007V-007-R Frequently Asked Questions (FAQs)

  • The recommended PCB layout for optimal thermal performance involves placing the DC-DC converter near a metal edge of the PCB, using a solid copper plane for heat dissipation, and ensuring good airflow around the component.
  • To ensure EMC, use a metal enclosure, keep the DC-DC converter away from sensitive circuits, use shielded cables, and follow proper grounding and shielding techniques.
  • The derating curve for the IAH12040A007V-007-R is not explicitly provided in the datasheet. However, TDK-Lambda Corporation recommends consulting their application notes or contacting their technical support for specific derating information.
  • The IAH12040A007V-007-R is designed to withstand moderate vibration levels. However, for high-vibration environments, additional mechanical support or mounting may be required to ensure reliable operation. Consult TDK-Lambda Corporation's application notes or technical support for specific guidance.
  • The recommended input capacitor type is a low-ESR ceramic capacitor with a value of 10-22 μF. However, the optimal capacitor value may vary depending on the specific application and input voltage. Consult TDK-Lambda Corporation's application notes or technical support for specific guidance.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

iAH12040A007V-007-R Overview

Use the download button to access the iAH12040A007V-007-R schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like iAH12, or try a keyword search, such as Power Supply Modules
