IAUC41N06S5L100ATMA1 - Infineon

Description: MOSFET MOSFET_)40V 60V)

Download IAUC41N06S5L100ATMA1 Model

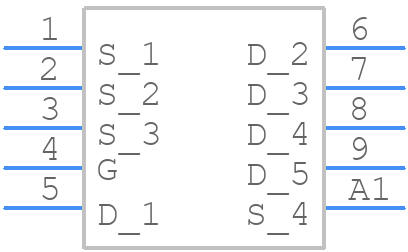

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
IAUC41N06S5L100ATMA1 - Infineon PCB footprint - Other - Other - PG-TDSON-8-33_H=1.1mm
click to zoom
3D Models
IAUC41N06S5L100ATMA1 - Infineon  - 3D model - Other - PG-TDSON-8-33_H=1.1mm
click to zoom

IAUC41N06S5L100ATMA1 Details

  • Manufacturer Part Number:

    IAUC41N06S5L100ATMA1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Germany, Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.29.00.95

  • Factory Lead Time:

    26 Weeks

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    5

  • Avalanche Energy Rating (Eas):

    37 mJ

  • Case Connection:

    DRAIN

  • Configuration:

    SINGLE WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    60 V

  • Drain Current-Max (ID):

    41 A

  • Drain-source On Resistance-Max:

    0.0139 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • Feedback Cap-Max (Crss):

    18 pF

  • JESD-30 Code:

    R-PDSO-F8

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    1

  • Number of Terminals:

    8

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    175 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Polarity/Channel Type:

    N-CHANNEL

  • Power Dissipation-Max (Abs):

    42 W

  • Pulsed Drain Current-Max (IDM):

    115 A

  • Reference Standard:

    AEC-Q101

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    FLAT

  • Terminal Position:

    DUAL

  • Transistor Element Material:

    SILICON

IAUC41N06S5L100ATMA1 Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for IAUC41N06S5L100ATMA1 is -55°C to 175°C.
  • Proper cooling can be achieved by using a heat sink with a thermal resistance of less than 10°C/W, and ensuring good airflow around the device.
  • The recommended gate resistor value for IAUC41N06S5L100ATMA1 is between 10Ω to 100Ω, depending on the specific application and switching frequency.
  • Yes, IAUC41N06S5L100ATMA1 is suitable for high-frequency switching applications up to 100 kHz, but the user should ensure that the device is properly cooled and the gate drive is optimized for the specific application.
  • To protect the MOSFET from overvoltage and overcurrent, use a voltage clamp or a TVS diode to limit the voltage, and a current sense resistor or a fuse to detect and respond to overcurrent conditions.
