IAUS165N08S5N029ATMA1 - Infineon

Description: Infineon MOSFET IAUS165N08S5N029ATMA1

Download IAUS165N08S5N029ATMA1 Model

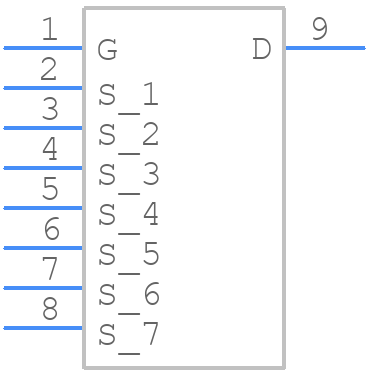

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

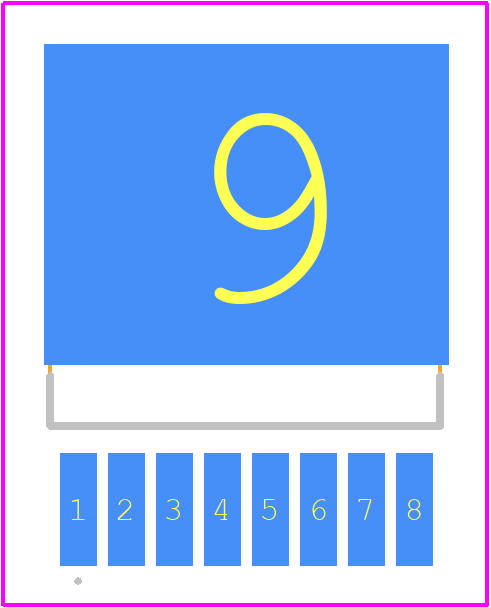

IAUS165N08S5N029ATMA1 - Infineon PCB footprint - Other - Other - PG-HSOG-8-1 _2022
click to zoom
3D Models
IAUS165N08S5N029ATMA1 - Infineon  - 3D model - Other - PG-HSOG-8-1 _2022
click to zoom

IAUS165N08S5N029ATMA1 Details

  • Manufacturer Part Number:

    IAUS165N08S5N029ATMA1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Austria, Germany, Malaysia

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    6

  • Avalanche Energy Rating (Eas):

    225 mJ

  • Case Connection:

    DRAIN

  • Configuration:

    SINGLE WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    80 V

  • Drain Current-Max (ID):

    165 A

  • Drain-source On Resistance-Max:

    0.0029 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • Feedback Cap-Max (Crss):

    54 pF

  • JESD-30 Code:

    R-PSSO-G8

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    1

  • Number of Terminals:

    8

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    175 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Polarity/Channel Type:

    N-CHANNEL

  • Power Dissipation-Max (Abs):

    167 W

  • Pulsed Drain Current-Max (IDM):

    660 A

  • Reference Standard:

    AEC-Q101

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Position:

    SINGLE

  • Transistor Element Material:

    SILICON

IAUS165N08S5N029ATMA1 Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for IAUS165N08S5N029ATMA1 is -40°C to 150°C.
  • Proper thermal management can be achieved by using a heat sink with a thermal resistance of less than 1.5 K/W, and ensuring good thermal contact between the IGBT and heat sink.
  • The recommended gate resistor value for IAUS165N08S5N029ATMA1 is between 10 ohms and 100 ohms, depending on the specific application and switching frequency.
  • Yes, IAUS165N08S5N029ATMA1 can be used in a parallel configuration, but it's essential to ensure that the gate drive signals are properly synchronized and that the thermal management is adequate for the increased power dissipation.
  • The maximum allowable voltage transient for IAUS165N08S5N029ATMA1 is 120% of the maximum rated voltage, but it's recommended to limit voltage transients to 10% of the maximum rated voltage to ensure reliable operation.
