IAUT260N10S5N019ATMA1 - Infineon

Description: INFINEON - IAUT260N10S5N019ATMA1 - MOSFET, AEC-Q101, N-CH, 100V, HSOF

Download IAUT260N10S5N019ATMA1 Model

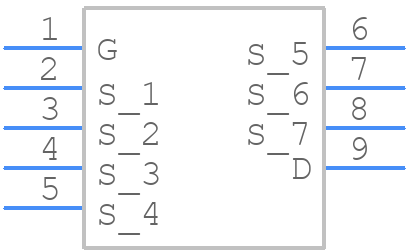

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download

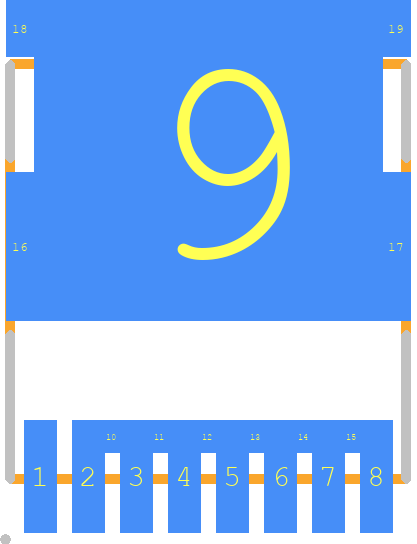

PCB Footprints
IAUT260N10S5N019ATMA1 - Infineon PCB footprint - Other - Other - PG-HSOF-8-1
click to zoom
3D Models
IAUT260N10S5N019ATMA1 - Infineon  - 3D model - Other - PG-HSOF-8-1
click to zoom

IAUT260N10S5N019ATMA1 Details

  • Manufacturer Part Number:

    IAUT260N10S5N019ATMA1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Germany, Malaysia

  • ECCN Code:

    EAR99

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    6

  • Avalanche Energy Rating (Eas):

    400 mJ

  • Case Connection:

    DRAIN

  • Configuration:

    SINGLE WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    100 V

  • Drain Current-Max (ID):

    260 A

  • Drain-source On Resistance-Max:

    0.0019 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • Feedback Cap-Max (Crss):

    92 pF

  • JESD-30 Code:

    R-PSSO-F8

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    1

  • Number of Terminals:

    8

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    175 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Polarity/Channel Type:

    N-CHANNEL

  • Power Dissipation-Max (Abs):

    300 W

  • Pulsed Drain Current-Max (IDM):

    1040 A

  • Reference Standard:

    AEC-Q101

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    FLAT

  • Terminal Position:

    SINGLE

  • Transistor Element Material:

    SILICON
