IC-GEQFN164X4 - ic-haus

Description: PWM RELAY/SOLENOID DRIVER

Download IC-GEQFN164X4 Model

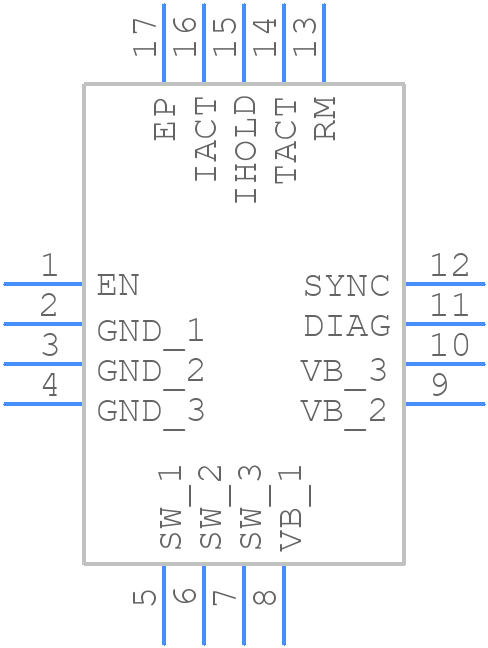

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
IC-GEQFN164X4 - ic-haus PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - QFN16 4 mm x 4 mm
click to zoom
3D Models
IC-GEQFN164X4 - ic-haus  - 3D model - Quad Flat No-Lead - QFN16 4 mm x 4 mm
click to zoom

IC-GEQFN164X4 Details

  • Manufacturer Part Number:

    IC-GEQFN164X4

  • Part Life Cycle Code:

    Contact Manufacturer

  • Package Description:

    HVQCCN, LCC16,.16SQ,25

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    iC-Haus

  • Interface IC Type:

    BUFFER OR INVERTER BASED PERIPHERAL DRIVER

  • JESD-30 Code:

    S-PQCC-N16

  • Length:

    4 mm

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current Flow Direction:

    SOURCE

  • Output Current-Max:

    1.1 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC16,.16SQ,25

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.9 mm

  • Supply Voltage-Max:

    36 V

  • Supply Voltage-Min:

    10 V

  • Supply Voltage-Nom:

    24 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    QUAD

  • Turn-off Time:

    10 µs

  • Turn-on Time:

    30 µs

  • Width:

    4 mm

IC-GEQFN164X4 Frequently Asked Questions (FAQs)

  • The recommended PCB footprint for IC-GEQFN16-4X4 is a 4x4mm QFN package with a 0.5mm pitch, and a thermal pad in the center. The datasheet provides a recommended land pattern and solder mask layout.
  • The thermal pad on the IC-GEQFN16-4X4 should be connected to a solid copper area on the PCB to ensure good thermal dissipation. A thermal via array or a thermal pad with a large copper area is recommended.
  • The maximum operating temperature range for IC-GEQFN16-4X4 is -40°C to 125°C, as specified in the datasheet. However, it's recommended to operate the device within a temperature range of -20°C to 85°C for optimal performance and reliability.
  • To ensure reliable soldering of the IC-GEQFN16-4X4, use a soldering process with a peak temperature of 260°C, and a soldering time of 3-5 seconds. A soldering iron with a fine tip and a temperature-controlled soldering station is recommended.
  • The IC-GEQFN16-4X4 should be stored in a dry, cool place, away from direct sunlight and moisture. The devices should be handled with anti-static precautions, such as using an anti-static wrist strap or mat, to prevent damage from electrostatic discharge.
