- Part Number IC-MHAQFN28-5X5
- Manufacturer ic-haus
- Pin Count 29
- Part Category Integrated Circuit
- Package Category Quad Flat No-Lead
- Footprint Name Quad Flat No-Lead - QFN28
- Released Date Apr 17, 2025
- Last Modified Date Apr 17, 2025 8:41 AM UTC
- Pinout / Pin List Click Here (Member Only)
IC-MHAQFN28-5X5 Details
-
Manufacturer Part Number:
IC-MHAQFN28-5X5
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Contact Manufacturer
-
Manufacturer:
iC-Haus
-
Mounting Feature:
SURFACE MOUNT
-
Number of Terminals:
28
-
Operating Current-Max:
18 mA
-
Operating Temperature-Max:
125 °C
-
Operating Temperature-Min:
-40 °C
-
Output Circuit Type:
SINGLE-ENDED
-
Package Body Material:
PLASTIC/EPOXY
IC-MHAQFN28-5X5 Frequently Asked Questions (FAQs)
-
The recommended PCB layout and land pattern can be found in the iC-Haus application note AN-001-001, which provides detailed guidelines for designing a reliable and efficient PCB layout for the IC-MHAQFN28-5X5.
-
The IC-MHAQFN28-5X5 has a thermal pad on the bottom side, which should be connected to a thermal ground plane on the PCB to dissipate heat efficiently. Additionally, a thermal interface material (TIM) can be used to improve heat transfer between the IC and the heat sink or PCB.
-
The IC-MHAQFN28-5X5 is specified to operate from -40°C to +125°C, but it's recommended to operate within the industrial temperature range of -40°C to +85°C for optimal performance and reliability.
-
The IC-MHAQFN28-5X5 can be programmed using the iC-Haus programming tool, which is available on the iC-Haus website. The tool provides a graphical user interface for configuring the device's registers and settings.
-
The typical power consumption of IC-MHAQFN28-5X5 depends on the operating mode and frequency. According to the datasheet, the typical power consumption is around 100-200 mW at 100 MHz, but it's recommended to consult the datasheet and application notes for more detailed information.
Trust Checks
Community Provided
System Verified
Community Approved
IC-MHAQFN28-5X5 Overview

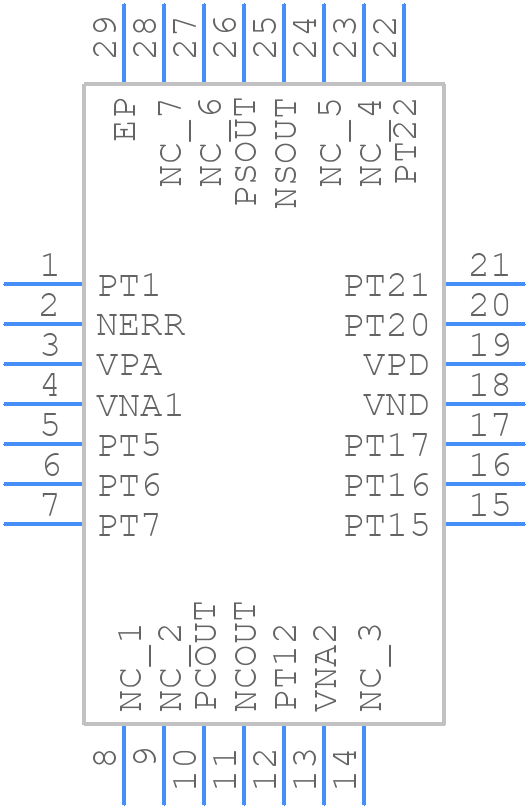

Use the download button to access the IC-MHAQFN28-5X5 schematic symbol, PCB footprint, and 3D model.
