IC-WKNDFN10 - ic-haus

Description: 15 V CW LASER DIODE DRIVER DFN10 4 mm x 4 mm

Download IC-WKNDFN10 Model

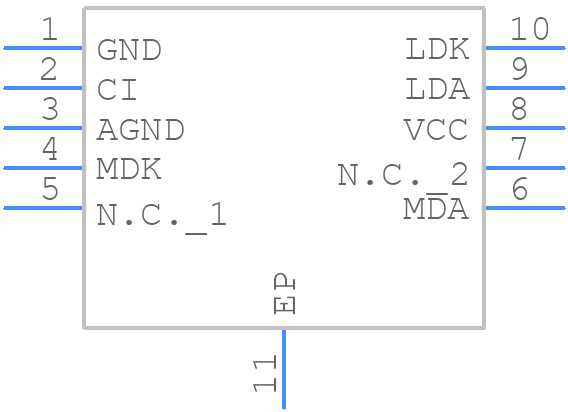

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
IC-WKNDFN10 - ic-haus PCB footprint - Small Outline No-lead - Small Outline No-lead - DFN10 4mmx4mm
click to zoom
3D Models
IC-WKNDFN10 - ic-haus  - 3D model - Small Outline No-lead - DFN10 4mmx4mm
click to zoom

IC-WKNDFN10 Details

  • Manufacturer Part Number:

    IC-WKNDFN10

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    DFN-10

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    iC-Haus

  • YTEOL:

    0

  • Additional Feature:

    SEATED HGT-NOM;

  • Interface IC Type:

    INTERFACE CIRCUIT

  • JESD-30 Code:

    S-PDSO-N10

  • Length:

    4 mm

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Seated Height-Max:

    0.9 mm

  • Supply Voltage-Max:

    15 V

  • Supply Voltage-Min:

    2.4 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    4 mm

IC-WKNDFN10 Frequently Asked Questions (FAQs)

  • A symmetrical layout with a solid ground plane and short signal paths is recommended. The datasheet provides a recommended PCB layout, but it's essential to consult with iC-Haus application notes and experienced engineers for specific guidance.
  • Calibration requires a thorough understanding of the device's internal registers and the specific requirements of your application. Consult the datasheet and iC-Haus application notes for calibration procedures, and consider consulting with iC-Haus support or experienced engineers for guidance.
  • The IC-WKNDFN10 has a maximum junction temperature of 150°C. Ensure proper heat dissipation by using a heat sink, thermal vias, and a thermally conductive PCB material. Consult the datasheet and iC-Haus application notes for thermal management guidelines.
  • The IC-WKNDFN10 is designed for industrial applications, but it's essential to consult with iC-Haus support and experienced engineers to ensure the device can withstand the specific vibration and shock requirements of your application.
  • Consult the datasheet, iC-Haus application notes, and troubleshooting guides. Use debugging tools, such as logic analyzers or oscilloscopes, to identify the root cause of the issue. If necessary, contact iC-Haus support for further assistance.
