IC51-0284-399 - Yamaichi

Description: Board to Board & Mezzanine Connectors 28 PIN PLCC 1.27 MM PITCH Insulation Resistance: 1,000M½minimum at 500 VDC,Voltage: 700 VAC Temperature: -55˚C ~ +170˚C

Download IC51-0284-399 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

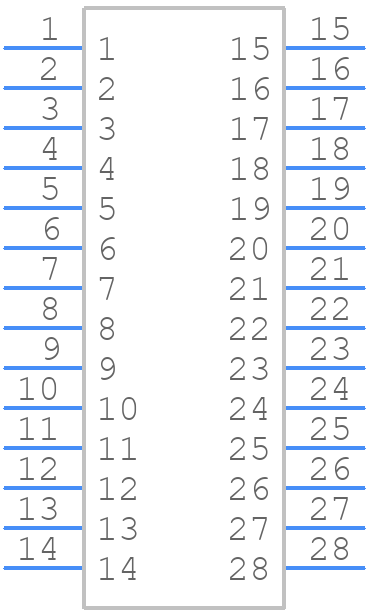

IC51-0284-399 - Yamaichi - PCB symbol
click to zoom
PCB Footprints

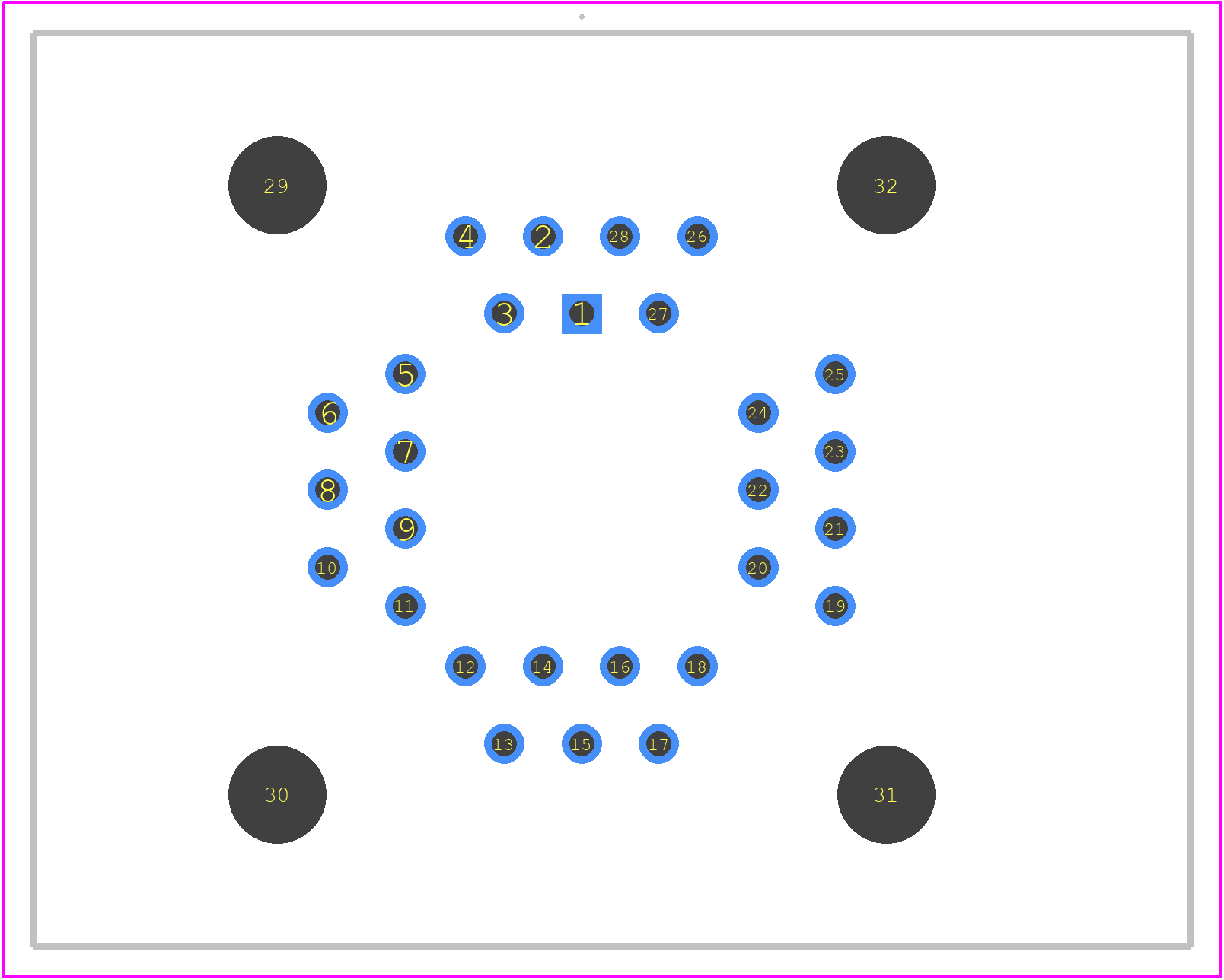

IC51-0284-399 - Yamaichi PCB footprint - Other - Other - PLCC28
click to zoom
3D Models
IC51-0284-399 - Yamaichi - 3D model - Other - PLCC28
click to zoom

IC51-0284-399 Details

  • Manufacturer Part Number:

    IC51-0284-399

  • Part Life Cycle Code:

    Contact Manufacturer

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Yamaichi Electronics Co Ltd

  • Additional Feature:

    WITH CLAMSHELL

  • Body Breadth:

    1.181 inch

  • Body Depth:

    0.807 inch

  • Body Length:

    1.417 inch

  • Contact Configuration:

    7X7

  • Contact Finish Mating:

    AU ON NI

  • Contact Material:

    BE-CU

  • Contact Style:

    BELLOWED TYPE

  • Device Socket Type:

    IC SOCKET

  • Device Type Used On:

    PLCC28

  • Dielectric Withstanding Voltage:

    700VAC V

  • Housing Material:

    POLYETHERIMIDE

  • Insulation Resistance:

    1000000000 Ω

  • Mounting Style:

    STRAIGHT

  • Number of Contacts:

    28

  • Operating Temperature-Max:

    170 °C

  • Operating Temperature-Min:

    -55 °C

  • Termination Type:

    SOLDER

IC51-0284-399 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5 N·m to 1.5 N·m, as specified in the manufacturer's application notes.
  • Yes, the IC51-0284-399 is designed to withstand vibrations up to 10 G (10-2000 Hz) and shocks up to 100 G (11 ms), making it suitable for use in high-vibration environments.
  • Yes, the IC51-0284-399 is compatible with lead-free soldering processes, with a recommended soldering temperature of 260°C (500°F) for 10 seconds or less.
  • The operating temperature range for the IC51-0284-399 is -40°C to 105°C (-40°F to 221°F), making it suitable for use in a wide range of applications.
  • The IC51-0284-399 has a moisture resistance rating of IP67, meaning it can withstand temporary immersion in water up to 1 meter (3.3 feet) for 30 minutes. However, it's not recommended for continuous use in wet environments.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

IC51-0284-399 Overview

Use the download button to access the IC51-0284-399 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like IC51-, or try a keyword search, such as Sockets and Chip Carriers
