IC51-0484-806 - Yamaichi

Description: IC & Component Sockets 48Pin QFP Burn-in Skt 0.50 pitch

Download IC51-0484-806 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

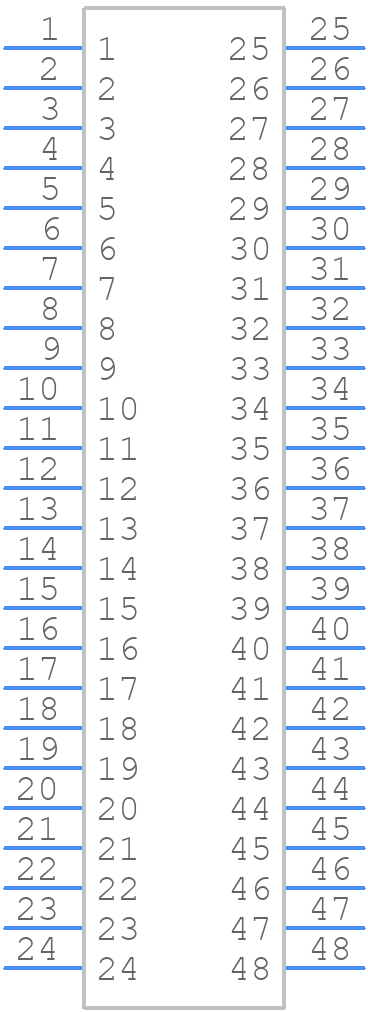

IC51-0484-806 - Yamaichi - PCB symbol
click to zoom
PCB Footprints

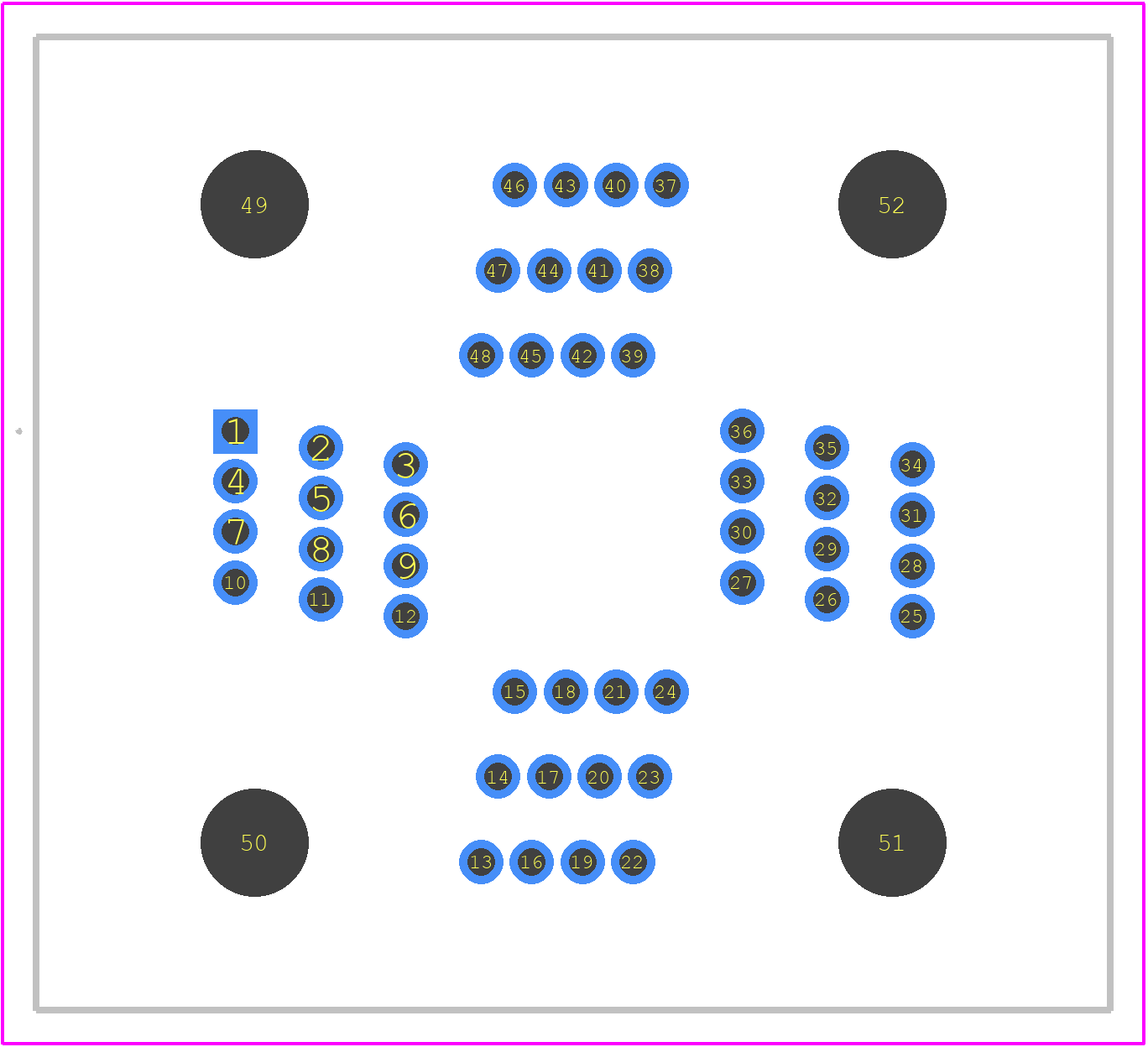

IC51-0484-806 - Yamaichi PCB footprint - Other - Other - IC51-0484-806-12
click to zoom
3D Models
IC51-0484-806 - Yamaichi - 3D model - Other - IC51-0484-806-12
click to zoom

IC51-0484-806 Details

  • Manufacturer Part Number:

    IC51-0484-806

  • Part Life Cycle Code:

    Contact Manufacturer

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Yamaichi Electronics Co Ltd

  • Additional Feature:

    WITH FLOATING BASE

  • Body Breadth:

    0.276 inch

  • Body Length:

    0.276 inch

  • Contact Finish Mating:

    AU ON NI

  • Contact Material:

    BE-CU

  • Contact Style:

    BELLOWED TYPE

  • Device Socket Type:

    IC SOCKET

  • Device Type Used On:

    QFP48

  • Dielectric Withstanding Voltage:

    700VAC V

  • Housing Material:

    POLYSULPHONE

  • Insulation Resistance:

    1000000000 Ω

  • Mating Contact Pitch:

    0.02 inch

  • Mounting Style:

    STRAIGHT

  • Number of Contacts:

    48

  • PCB Contact Pattern:

    STAGGERED

  • Terminal Pitch:

    1.4986 mm

  • Termination Type:

    SOLDER
