IC51-0644-807 - Yamaichi

Description: IC & Component Sockets 64Pin QFP Burn-in Skt 0.50 pitch, -55°C ~ 170°C

Download IC51-0644-807 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

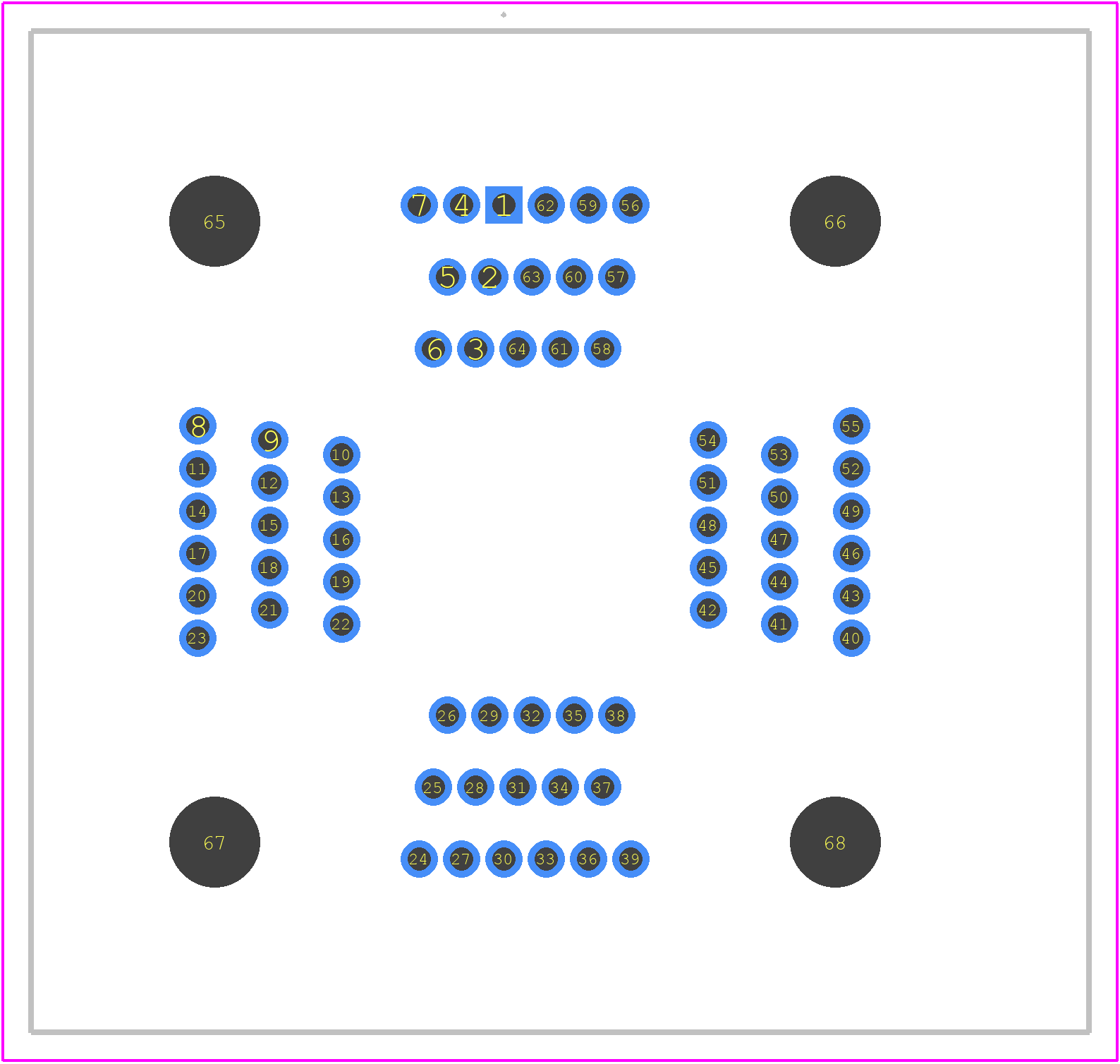

IC51-0644-807 - Yamaichi PCB footprint - Other - Other - IC51-0644-807-2
click to zoom
3D Models
IC51-0644-807 - Yamaichi  - 3D model - Other - IC51-0644-807-2
click to zoom

IC51-0644-807 Details

  • Manufacturer Part Number:

    IC51-0644-807

  • Part Life Cycle Code:

    Contact Manufacturer

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Yamaichi Electronics Co Ltd

  • Additional Feature:

    W/ FLOATING BASE LIDLESS

  • Body Breadth:

    0.394 inch

  • Body Length:

    0.394 inch

  • Contact Finish Mating:

    AU ON NI

  • Contact Material:

    BE-CU

  • Contact Style:

    BELLOWED TYPE

  • Device Socket Type:

    IC SOCKET

  • Device Type Used On:

    QFP64

  • Dielectric Withstanding Voltage:

    700VAC V

  • Housing Material:

    POLYSULPHONE

  • Insulation Resistance:

    1000000000 Ω

  • Mating Contact Pitch:

    0.02 inch

  • Mounting Style:

    STRAIGHT

  • Number of Contacts:

    64

  • PCB Contact Pattern:

    STAGGERED

  • Termination Type:

    SOLDER

IC51-0644-807 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5 Nm to 1.5 Nm, but it's best to consult the datasheet or contact Yamaichi Electronics Co Ltd for specific guidance.
  • Yes, the IC51-0644-807 is designed to withstand vibrations and shocks, but it's essential to ensure proper mounting and secure connections to prevent damage or disconnection.
  • The IC51-0644-807 has an operating temperature range of -40°C to 105°C, making it suitable for most industrial and automotive applications. However, it's crucial to check the specific temperature requirements of your application.
  • While it's technically possible to use a different wire gauge, it's not recommended as it may affect the connector's performance, reliability, and durability. Stick to the recommended wire gauge for optimal results.
  • To ensure proper EMI shielding, make sure to connect the shielded cable to the connector's shielded area, and ensure the connector is properly grounded. Consult the datasheet or contact Yamaichi Electronics Co Ltd for specific guidance.
