The recommended torque for the screw terminals is 0.5 N·m to 1.5 N·m. However, it's essential to consult the datasheet and manufacturer's guidelines for specific torque values to ensure reliable connections.
Yes, the IC51-1004-809 is designed to withstand vibrations. However, it's crucial to ensure proper mounting and secure connections to prevent damage or disconnection. Consult the manufacturer's guidelines for vibration testing and recommendations.
The operating temperature range for IC51-1004-809 is -40°C to 85°C. However, it's essential to consider the specific application and environmental conditions to ensure reliable operation within the specified temperature range.
Yes, IC51-1004-809 is compatible with lead-free soldering processes. The manufacturer recommends following the recommended soldering profile and guidelines to ensure reliable connections and minimize the risk of damage.
The recommended storage condition for IC51-1004-809 is in a dry, cool place, away from direct sunlight and moisture. The storage temperature should be between -10°C to 30°C, and the relative humidity should be below 60%.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
IC51-1004-809 Overview

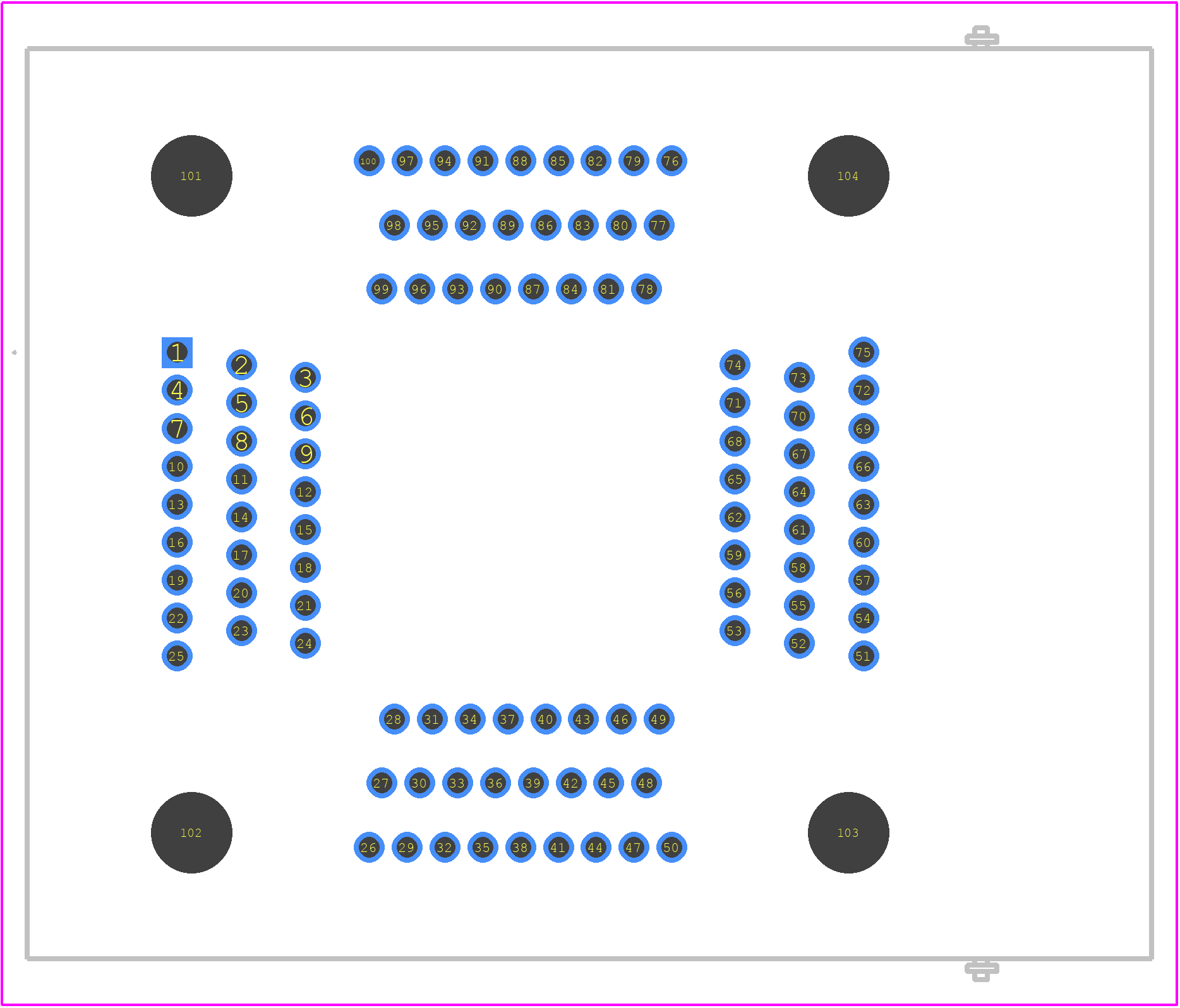

Use the download button to access the IC51-1004-809 schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like IC51-,
or try a keyword search, such as Sockets and Chip Carriers
