ICB2FL03GXUMA2 - Infineon

Description: LED Lighting Drivers FL LIGHTING

Download ICB2FL03GXUMA2 Model

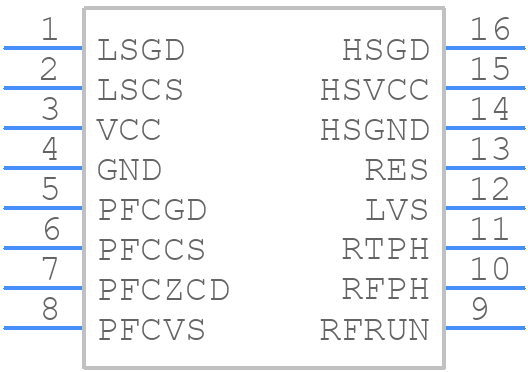

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
ICB2FL03GXUMA2 - Infineon PCB footprint - Small Outline Packages - Small Outline Packages - PG-DSO-16
click to zoom
3D Models
ICB2FL03GXUMA2 - Infineon  - 3D model - Small Outline Packages - PG-DSO-16
click to zoom

ICB2FL03GXUMA2 Details

  • Manufacturer Part Number:

    ICB2FL03GXUMA2

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOP-16

  • Country Of Origin:

    Austria, Mainland China, Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    13 Weeks

  • Manufacturer:

    Infineon Technologies AG

  • Analog IC - Other Type:

    FLUORESCENT LIGHT CONTROLLER

  • Control Mode:

    CURRENT/VOLTAGE-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    18 V

  • Input Voltage-Min:

    11 V

  • Input Voltage-Nom:

    15 V

  • JESD-30 Code:

    R-PDSO-G16

  • Length:

    9.93 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -25 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Seated Height-Max:

    1.75 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BOOST

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    3.9 mm

ICB2FL03GXUMA2 Frequently Asked Questions (FAQs)

  • Infineon recommends a 2-layer or 4-layer PCB with a thermal via array under the device to improve thermal dissipation. A minimum of 5 thermal vias with a diameter of 0.3 mm is recommended.
  • Ensure proper thermal management by providing adequate heat sinking and airflow. Also, consider derating the device's current rating according to the temperature derating curve provided in the datasheet.
  • The recommended gate resistor value is between 10 Ω to 20 Ω. However, the optimal value may vary depending on the specific application and PCB layout. It's recommended to experiment with different values to achieve the best trade-off between switching speed and EMI performance.
  • Implement overvoltage protection using a TVS diode or a zener diode, and overcurrent protection using a fuse or a current-sensing resistor. Additionally, consider using a supervisory IC to monitor the device's operating conditions and provide fault detection.
  • The recommended dead time is typically between 100 ns to 200 ns, depending on the specific application and switching frequency. However, the optimal dead time may vary, and it's recommended to experiment with different values to achieve the best trade-off between switching performance and EMI performance.
