ICE1HS01G-1 - Infineon

Description: AC/DC Converters Half-Bridge Res Cntlr 18V 600 kHz

Download ICE1HS01G-1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

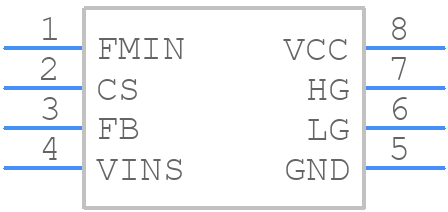

ICE1HS01G-1 - Infineon - PCB symbol
click to zoom
PCB Footprints
ICE1HS01G-1 - Infineon PCB footprint - Small Outline Packages - Small Outline Packages - PG-DSO 8+
click to zoom
3D Models
ICE1HS01G-1 - Infineon - 3D model - Small Outline Packages - PG-DSO 8+
click to zoom

ICE1HS01G-1 Details

  • Manufacturer Part Number:

    ICE1HS01G-1

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOP-8

  • Country Of Origin:

    Mainland China, Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Infineon Technologies AG

  • Additional Feature:

    ALSO HAS PFM CONTROL TECHNIQUE

  • Analog IC - Other Type:

    SWITCHING CONTROLLER

  • Control Technique:

    RESONANT CONTROL

  • Input Voltage-Max:

    18 V

  • Input Voltage-Min:

    10.2 V

  • Input Voltage-Nom:

    15 V

  • JESD-30 Code:

    R-PDSO-G8

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -25 °C

  • Output Current-Max:

    1.5 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    YES

  • Switching Frequency-Max:

    609 kHz

  • Temperature Grade:

    OTHER

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    3.9 mm
