ICE1HS01G - Infineon

Description: ICE1HS01 - LLC Resonant mode Controller

Download ICE1HS01G Model
Schematic

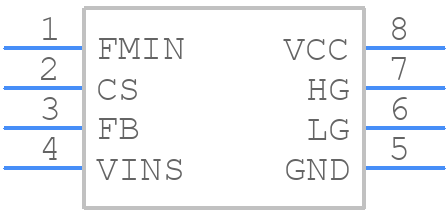

symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
ICE1HS01G - Infineon PCB footprint - Small Outline Packages - Small Outline Packages - PG-DSO 8
click to zoom
3D Models
ICE1HS01G - Infineon  - 3D model - Small Outline Packages - PG-DSO 8
click to zoom

ICE1HS01G Details

  • Manufacturer Part Number:

    ICE1HS01G

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    GREEN, PLASTIC, DSO-8

  • Pin Count:

    8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    0

  • Built-in Protections:

    OVER VOLTAGE; UNDER VOLTAGE

  • Interface IC Type:

    BUFFER OR INVERTER BASED PERIPHERAL DRIVER

  • JESD-30 Code:

    R-PDSO-G8

  • Length:

    5 mm

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -25 °C

  • Output Current Flow Direction:

    SOURCE AND SINK

  • Output Peak Current Limit-Nom:

    1.5 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.73 mm

  • Supply Voltage-Max:

    18 V

  • Supply Voltage-Min:

    11 V

  • Supply Voltage-Nom:

    15 V

  • Surface Mount:

    YES

  • Temperature Grade:

    OTHER

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    4 mm

ICE1HS01G Frequently Asked Questions (FAQs)

  • A 2-layer or 4-layer PCB with a solid ground plane and thermal vias is recommended. The device should be placed near a thermal pad or heat sink to ensure good heat dissipation.
  • Ensure proper thermal design, use a heat sink if necessary, and follow the recommended operating conditions. Monitor the device's junction temperature (TJ) and adjust the design accordingly.
  • The maximum allowed voltage on the VIN pin is 5.5V. Exceeding this voltage may damage the device.
  • Yes, the ICE1HS01G is designed for high-reliability applications. However, ensure that the system is designed with redundancy and fault-tolerance in mind to minimize downtime.
  • Use a logic analyzer or oscilloscope to monitor the device's signals. Check the power supply, clock, and data lines for errors. Consult the datasheet and application notes for troubleshooting guidelines.
