ICE2A280Z - Infineon

Description: INFINEON - ICE2A280Z - IC, MOSFET, INTELLIGENT DRIVER

Download ICE2A280Z Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

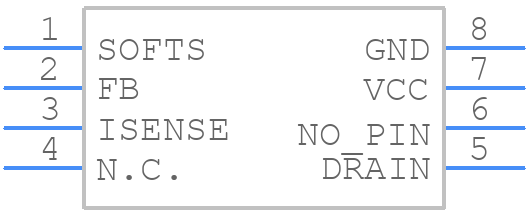

ICE2A280Z - Infineon - PCB symbol
click to zoom
PCB Footprints
ICE2A280Z - Infineon PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - PG-DIP-7
click to zoom
3D Models
ICE2A280Z - Infineon - 3D model - Dual-In-Line Packages - PG-DIP-7
click to zoom

ICE2A280Z Details

  • Manufacturer Part Number:

    ICE2A280Z

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    DIP

  • Pin Count:

    7

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    0

  • Analog IC - Other Type:

    SWITCHING REGULATOR
