ICE3AR2280VJZXKLA1 - Infineon

Description: AC/DC Converters COOLSET (INCL. GEN5)

Download ICE3AR2280VJZXKLA1 Model

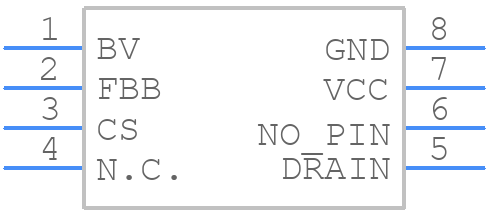

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
ICE3AR2280VJZXKLA1 - Infineon PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - PG-DIP-7
click to zoom
3D Models
ICE3AR2280VJZXKLA1 - Infineon  - 3D model - Dual-In-Line Packages - PG-DIP-7
click to zoom

ICE3AR2280VJZXKLA1 Details

  • Manufacturer Part Number:

    ICE3AR2280VJZXKLA1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Package Description:

    DIP-7

  • Country Of Origin:

    Mainland China, Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    13 Weeks

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    3

  • Analog IC - Other Type:

    SWITCHING CONTROLLER

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    25 V

  • Input Voltage-Min:

    11.2 V

  • Input Voltage-Nom:

    17 V

  • JESD-30 Code:

    R-PDIP-T7

  • JESD-609 Code:

    e3

  • Length:

    9.385 mm

  • Number of Functions:

    1

  • Number of Terminals:

    7

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP7/8,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Seated Height-Max:

    4.8 mm

  • Surface Mount:

    NO

  • Switcher Configuration:

    BUCK-BOOST

  • Switching Frequency-Max:

    113 kHz

  • Technology:

    BICMOS

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    7.62 mm

ICE3AR2280VJZXKLA1 Frequently Asked Questions (FAQs)

  • Infineon recommends a 2-layer or 4-layer PCB with a solid ground plane and a thermal relief pattern under the device to ensure optimal thermal performance.
  • To ensure reliable operation in high-temperature environments, it is recommended to derate the device's power dissipation according to the temperature derating curve provided in the datasheet, and to ensure good thermal conduction to the PCB and heat sink.
  • Infineon recommends using X7R or X5R ceramic capacitors with a voltage rating of at least 25V for the input and output capacitors, with a capacitance value of 10uF to 22uF for the input capacitor and 10uF to 47uF for the output capacitor.
  • To troubleshoot issues with the device's overcurrent protection, check the input voltage, output current, and temperature to ensure they are within the recommended operating conditions. Also, verify that the device is properly configured and that the overcurrent protection threshold is set correctly.
  • Infineon recommends a soldering profile with a peak temperature of 260°C, a dwell time above 217°C of 30-45 seconds, and a total process time of 60-90 seconds.
