ICE3B0565 - Infineon

Description: IC OFFLINE SWITCH FLYBACK 8DIP

Download ICE3B0565 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

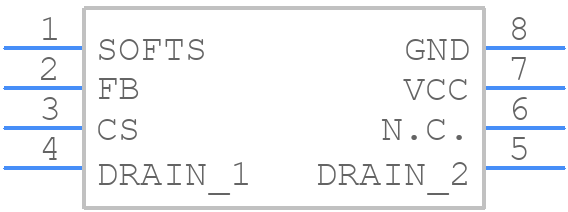

ICE3B0565 - Infineon - PCB symbol
click to zoom
PCB Footprints
ICE3B0565 - Infineon PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - PG-DIP-8
click to zoom
3D Models
ICE3B0565 - Infineon - 3D model - Dual-In-Line Packages - PG-DIP-8
click to zoom

ICE3B0565 Details

  • Manufacturer Part Number:

    ICE3B0565

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    DIP

  • Pin Count:

    8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    0

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    21 V

  • Input Voltage-Min:

    9 V

  • Input Voltage-Nom:

    15 V

  • JESD-30 Code:

    R-PDIP-T8

  • Length:

    9.52 mm

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP8,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    4.37 mm

  • Surface Mount:

    NO

  • Switcher Configuration:

    SINGLE

  • Switching Frequency-Max:

    67 kHz

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    7.62 mm
