ICE3BR0665JXKLA1 - Infineon

Description: • 650V avalanche rugged CoolMOS® with built-in Startup Cell • Active Burst Mode for lowest Standby Power • Fast load jump response in Active Burst Mode • 65kHz internally fixed switching frequency • Auto Restart Protection Mode for Overload, Open Loop, VCC Undervoltage, Overtemperature & Overvoltage • Built-in Soft Start • Built-in blanking window with extendable blanking time for short duration high current • External auto-restart enable pin • Max Duty Cycle 75% • Overall tolerance of Current

Download ICE3BR0665JXKLA1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

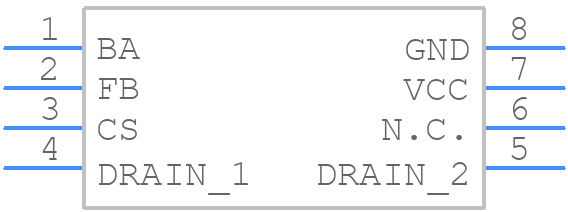

ICE3BR0665JXKLA1 - Infineon - PCB symbol
click to zoom
PCB Footprints
ICE3BR0665JXKLA1 - Infineon PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - PG-DIP-8
click to zoom
3D Models
ICE3BR0665JXKLA1 - Infineon - 3D model - Dual-In-Line Packages - PG-DIP-8
click to zoom

ICE3BR0665JXKLA1 Details

  • Manufacturer Part Number:

    ICE3BR0665JXKLA1

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    DIP

  • Package Description:

    GREEN, PLASTIC, DIP-8

  • Pin Count:

    8

  • Country Of Origin:

    Mainland China, Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    13 Weeks

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    3

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    25 V

  • Input Voltage-Min:

    9.8 V

  • Input Voltage-Nom:

    18 V

  • JESD-30 Code:

    R-PDIP-T8

  • Length:

    9.385 mm

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    130 °C

  • Operating Temperature-Min:

    -25 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    4.8 mm

  • Surface Mount:

    NO

  • Switching Frequency-Max:

    73.5 kHz

  • Technology:

    BICMOS

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    7.62 mm

ICE3BR0665JXKLA1 Frequently Asked Questions (FAQs)

  • A 2-layer or 4-layer PCB with a solid ground plane and thermal vias is recommended. The device should be placed near a heat sink or a thermal pad to dissipate heat efficiently.
  • Ensure proper heat sinking, use a thermal interface material, and follow the recommended PCB layout. Also, consider derating the device's power handling capabilities at high temperatures.
  • The critical timing parameters include the switching frequency, dead time, and minimum on-time. These parameters should be carefully considered to ensure proper operation and to prevent damage to the device.
  • Use a voltage regulator or a TVS diode to protect against overvoltage. Implement overcurrent protection using a current sense resistor and a comparator or a dedicated overcurrent protection IC.
  • The recommended gate drive voltage is 12-15V, and the recommended gate drive current is 1-2A. However, the actual values may vary depending on the specific application and PCB layout.
