ICE3PCS03G - Infineon

Description: Infineon ICE3PCS03G, Power Factor Controller, 250 kHz, Maximum of 25 V, 8-Pin DSO

Download ICE3PCS03G Model

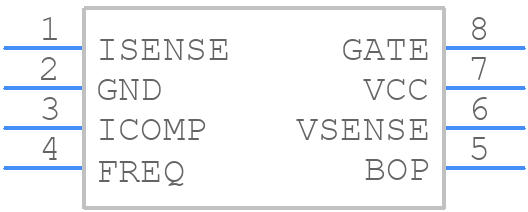

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
ICE3PCS03G - Infineon PCB footprint - Small Outline Packages - Small Outline Packages - PG-DSO-8_2023
click to zoom
3D Models
ICE3PCS03G - Infineon  - 3D model - Small Outline Packages - PG-DSO-8_2023
click to zoom

ICE3PCS03G Details

  • Manufacturer Part Number:

    ICE3PCS03G

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    SOP-8

  • Pin Count:

    8

  • Country Of Origin:

    Mainland China, Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    13 Weeks

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    7

  • Analog IC - Other Type:

    POWER FACTOR CONTROLLER

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    25 V

  • Input Voltage-Min:

    11.9 V

  • Input Voltage-Nom:

    18 V

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -25 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Nom (Vsup):

    18 V

  • Surface Mount:

    YES

  • Switcher Configuration:

    BOOST

  • Switching Frequency-Max:

    250 kHz

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    4 mm

ICE3PCS03G Frequently Asked Questions (FAQs)

  • A 2-layer or 4-layer PCB with a solid ground plane and thermal vias is recommended. The device should be placed near a heat sink or a thermal pad to ensure good thermal conduction.
  • Ensure proper thermal design, use a heat sink or thermal pad, and follow the recommended PCB layout. Also, consider using a thermal interface material (TIM) to improve heat transfer between the device and heat sink.
  • The maximum allowed voltage on the VIN pin is 28V, but it's recommended to keep it below 24V for reliable operation and to prevent damage to the internal voltage regulator.
  • Optimize the device configuration by selecting the correct switching frequency, adjusting the output voltage, and using the built-in power saving modes (e.g., pulse-skipping mode) to minimize power losses.
  • Use X7R or X5R ceramic capacitors with a voltage rating of 10V or higher for the input capacitor (CIN) and a voltage rating of 5V or higher for the output capacitor (COUT). The recommended capacitance values are 10uF to 22uF for CIN and 10uF to 47uF for COUT.
