A 2-layer or 4-layer PCB with a solid ground plane and thermal vias is recommended. The device should be placed near a thermal pad or heat sink to dissipate heat efficiently.
Ensure proper heat sinking, use a thermal interface material (TIM) with a thermal conductivity of at least 1 W/mK, and consider using a heat sink with a thermal resistance of less than 10°C/W.
A 10uF to 22uF X7R or X5R ceramic capacitor with a voltage rating of at least 25V is recommended for input decoupling.
Use a shielded inductor, keep the layout compact, and use a common-mode choke or EMI filter to reduce emissions. Ensure proper grounding and decoupling of the device.
The maximum allowed voltage drop across the device is 0.5V. Exceeding this may affect device reliability and performance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ICE3PCS03GXUMA1 Overview

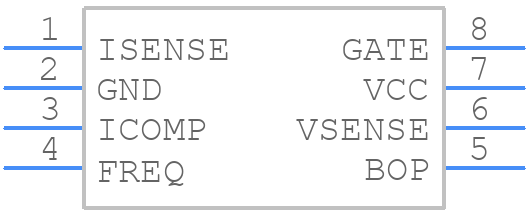

Use the download button to access the ICE3PCS03GXUMA1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ICE3P,
or try a keyword search, such as Switching Regulator or Controllers
