ICE3RBR4765JZ - Infineon

Description: AC/DC Converters AC/DC COOLSET

Download ICE3RBR4765JZ Model

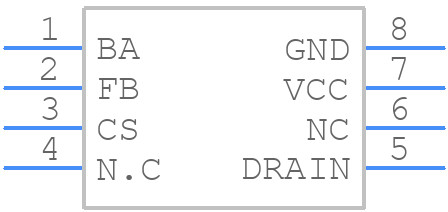

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
ICE3RBR4765JZ - Infineon PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - ICE3RBR4765JZ
click to zoom
3D Models
ICE3RBR4765JZ - Infineon  - 3D model - Dual-In-Line Packages - ICE3RBR4765JZ
click to zoom

ICE3RBR4765JZ Details

  • Manufacturer Part Number:

    ICE3RBR4765JZ

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    DIP-7

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    0

  • Analog IC - Other Type:

    SWITCHING CONTROLLER

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    25 V

  • Input Voltage-Min:

    11.2 V

  • Input Voltage-Nom:

    18 V

  • JESD-30 Code:

    R-PDIP-T7

  • Length:

    9.435 mm

  • Number of Functions:

    1

  • Number of Terminals:

    7

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP7/8,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Seated Height-Max:

    4.57 mm

  • Surface Mount:

    NO

  • Switching Frequency-Max:

    67.6 kHz

  • Technology:

    BICMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    7.62 mm

ICE3RBR4765JZ Frequently Asked Questions (FAQs)

  • A 2-layer or 4-layer PCB with a solid ground plane and thermal vias is recommended. The device should be placed near a thermal pad or heat sink to ensure good heat dissipation.
  • Ensure proper thermal design, use a heat sink if necessary, and follow the recommended operating conditions. Monitor the device's junction temperature (Tj) and adjust the design accordingly.
  • The critical timing parameters include the switching frequency (fs), dead time (td), and minimum on-time (ton_min). Ensure these parameters are within the recommended specifications to avoid malfunction or damage.
  • Implement a suitable OCP and OVP circuitry, such as a current sense resistor and a voltage monitor, to detect and respond to fault conditions. The ICE3RBR4765JZ has built-in protection features, but additional external circuitry may be required for specific applications.
  • Choose input capacitors with low ESR and high ripple current capability. Output capacitors should have low ESR and be suitable for the output voltage and current requirements. Consult the datasheet and application notes for specific recommendations.
