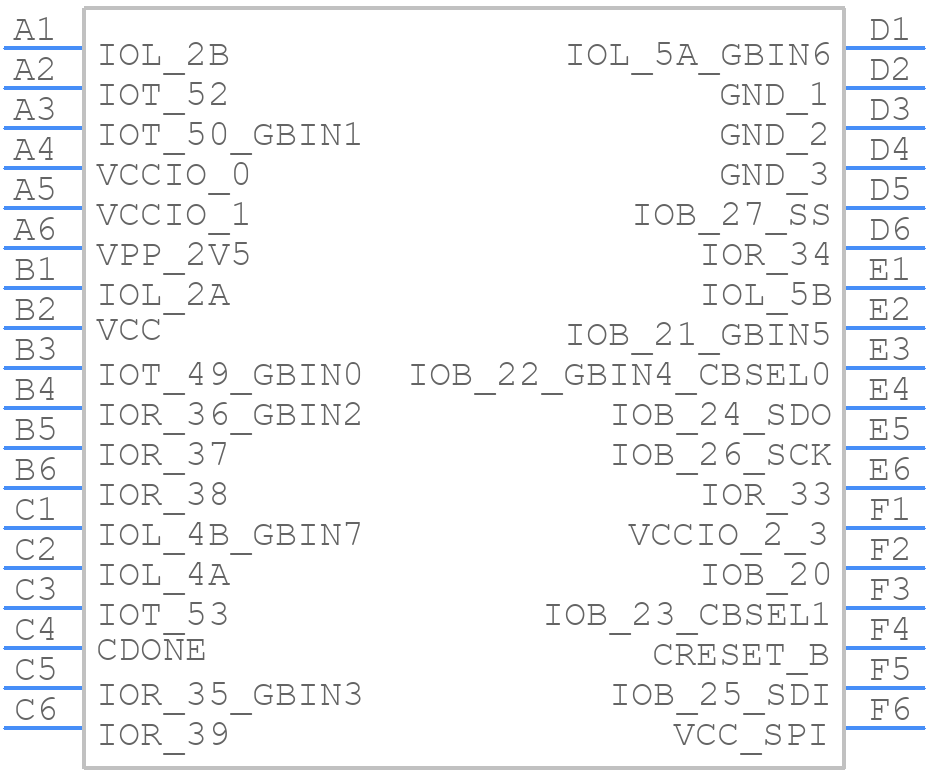

ICE40LP1K-CM36TR1K - Lattice Semiconductor

ICE40LP1K-CM36TR1K Frequently Asked Questions (FAQs)

• What is the recommended PCB layout and routing strategy for this FPGA?
  Lattice provides a PCB design guide and layout recommendations in their documentation, including guidelines for signal integrity, power distribution, and thermal management. It's essential to follow these guidelines to ensure reliable operation and minimize signal degradation.
• How do I optimize the power consumption of this FPGA?
  To optimize power consumption, use the Lattice Diamond software to analyze and optimize the design for power. Additionally, consider using the FPGA's built-in power management features, such as dynamic voltage and frequency scaling, and implement power gating and clock gating techniques in the design.
• What are the limitations of the FPGA's internal oscillator, and when should I use an external clock source?
  The internal oscillator has a limited frequency range and accuracy. If your design requires a higher frequency or more precise clocking, it's recommended to use an external clock source. Additionally, if you need to synchronize multiple FPGAs or devices, an external clock source is preferred.
• How do I ensure reliable configuration and programming of the FPGA?
  Use the Lattice Diamond software to generate a reliable configuration bitstream, and follow the recommended programming procedures. Ensure that the FPGA is properly powered and clocked during configuration, and use a reliable programming interface, such as JTAG or SPI.
• What are the thermal management considerations for this FPGA, and how do I prevent overheating?
  The FPGA has a maximum junction temperature rating of 85°C. Ensure good airflow around the device, and consider using a heat sink or thermal interface material if the device will be operating in a high-temperature environment. Monitor the device temperature using the built-in thermal sensor and take corrective action if necessary.
