Lattice Semiconductor provides a PCB layout and routing guidelines document that can be found on their website. It's essential to follow these guidelines to ensure signal integrity and minimize noise.
To optimize power consumption, use the Lattice Diamond software to analyze and optimize the design for power. Additionally, consider using the device's built-in power management features, such as clock gating and dynamic voltage frequency scaling.
Implement a secure boot process by using a secure boot loader, encrypting the bitstream, and using a secure key storage mechanism. Also, ensure that the boot process is validated and authenticated to prevent tampering.
Use the Lattice Diamond software's built-in debugging tools, such as the Signal Tap Logic Analyzer and the Chip Planner. Additionally, use external debugging tools, such as logic analyzers and oscilloscopes, to troubleshoot issues.
Ensure proper thermal management by providing adequate heat dissipation, using thermal interfaces, and following Lattice Semiconductor's thermal management guidelines. Also, consider using thermal simulation tools to analyze and optimize the design.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ICE40LP1K-CM49 Overview

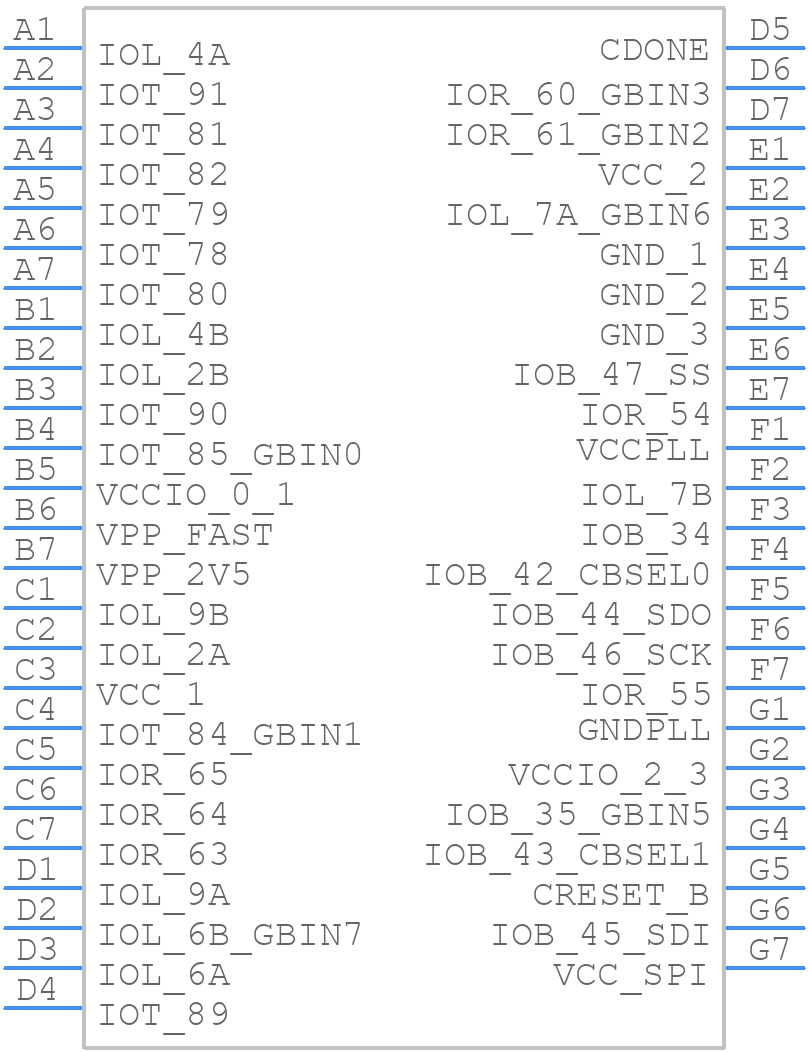

Use the download button to access the ICE40LP1K-CM49 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ICE40,
or try a keyword search, such as Field Programmable Gate Arrays
Suggested Parts
If you searched for ICE40LP1K-CM49, you might also be interested in these parts:
