ICF-628-S-O - SAMTEC

Description: IC & Component Sockets .100" Surface Mount Screw Machine DIP Socket

Download ICF-628-S-O Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
ICF-628-S-O - SAMTEC - PCB symbol
click to zoom
PCB Footprints

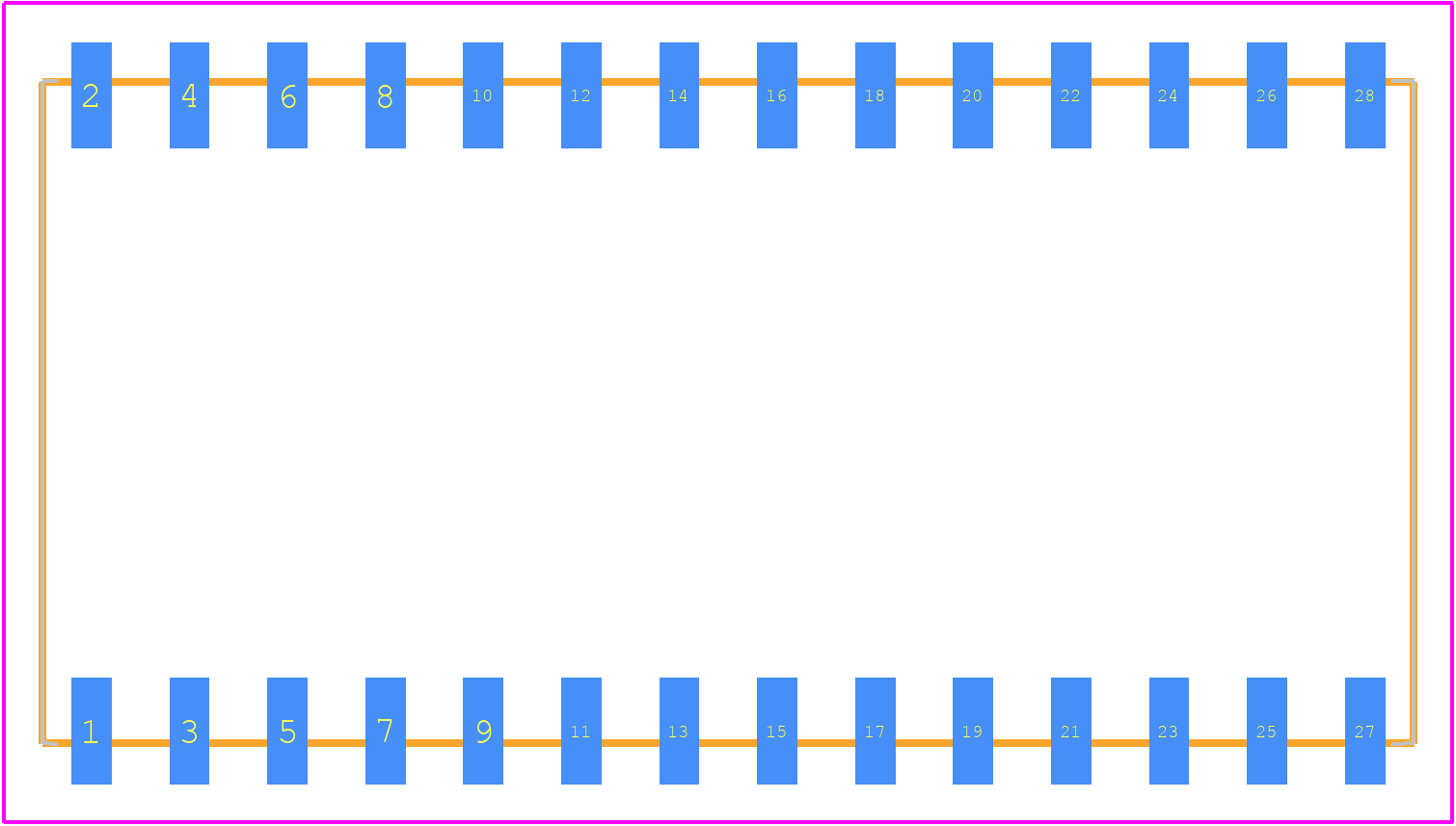

ICF-628-S-O - SAMTEC PCB footprint - Other - Other - ICF-628-S-O-2
click to zoom
3D Models
ICF-628-S-O - SAMTEC - 3D model - Other - ICF-628-S-O-2
click to zoom

ICF-628-S-O Details

  • Manufacturer Part Number:

    ICF-628-S-O

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Malaysia, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    2 Weeks, 5 Days

  • Manufacturer:

    Samtec Inc

  • YTEOL:

    7.5

  • Additional Feature:

    TIGER EYE CONTACT

  • Body Breadth:

    0.675 inch

  • Body Depth:

    0.18 inch

  • Body Length:

    1.4 inch

  • Contact Configuration:

    RECTANGLE

  • Contact Finish Mating:

    GOLD (30) OVER NICKEL (50)

  • Contact Finish Termination:

    Tin (Sn) - with Nickel (Ni) barrier

  • Contact Material:

    BERYLLIUM COPPER

  • Contact Style:

    RND PIN-SKT

  • Current Rating:

    1 A

  • Device Socket Type:

    IC SOCKET

  • Device Type Used On:

    DIP28

  • Dielectric Withstanding Voltage:

    600VAC V

  • Housing Material:

    LIQUID CRYSTAL POLYMER

  • Insulation Resistance:

    5000000000 Ω

  • JESD-609 Code:

    e3

  • Mating Contact Pitch:

    0.1 inch

  • Mounting Style:

    STRAIGHT

  • Number of Contacts:

    28

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • PCB Contact Pattern:

    RECTANGULAR

  • PCB Contact Row Spacing:

    0.6000000000000001 mm

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SURFACE MOUNT

ICF-628-S-O Frequently Asked Questions (FAQs)

  • The recommended torque for the screws on the ICF-628-S-O connector is 0.5-1.5 in-lbs (0.056-0.169 Nm) according to Samtec's application notes.
  • Yes, the ICF-628-S-O connector is designed to withstand high-vibration environments. It meets the IEC 61373 Cat 2 vibration standard, which means it can operate in environments with vibrations up to 15 g (147 m/s²) at 10-2000 Hz.
  • Yes, the ICF-628-S-O connector is compatible with lead-free soldering processes. Samtec recommends using a soldering temperature of 260°C (500°F) for a maximum of 10 seconds.
  • The maximum operating temperature of the ICF-628-S-O connector is 125°C (257°F). However, it's recommended to derate the connector's current rating by 1% for every 1°C (1.8°F) above 85°C (185°F).
  • The ICF-628-S-O connector has a moisture sensitivity level (MSL) of 1, which means it can withstand normal humidity levels. However, it's not designed for immersion in water or exposure to high-pressure water jets. For humid or wet environments, consider using a connector with a higher MSL rating or applying a conformal coating.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ICF-628-S-O Overview

Use the download button to access the ICF-628-S-O schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ICF-6, or try a keyword search, such as Sockets and Chip Carriers
