ICH10024S12 - XP POWER

Description: Isolated Board Mount DC/DC Converter, Half Brick, Fixed, Adjustable, Through Hole, 100 W, 12 V RoHS Compliant: Yes

Download ICH10024S12 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

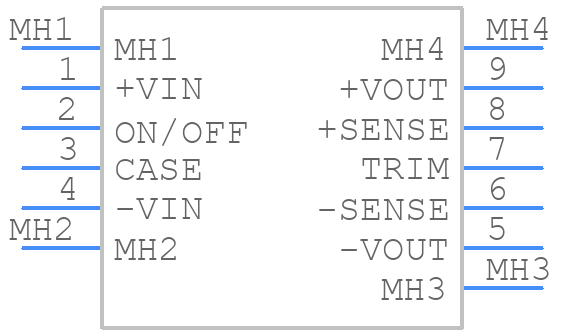

Symbol
ICH10024S12 - XP POWER - PCB symbol
click to zoom

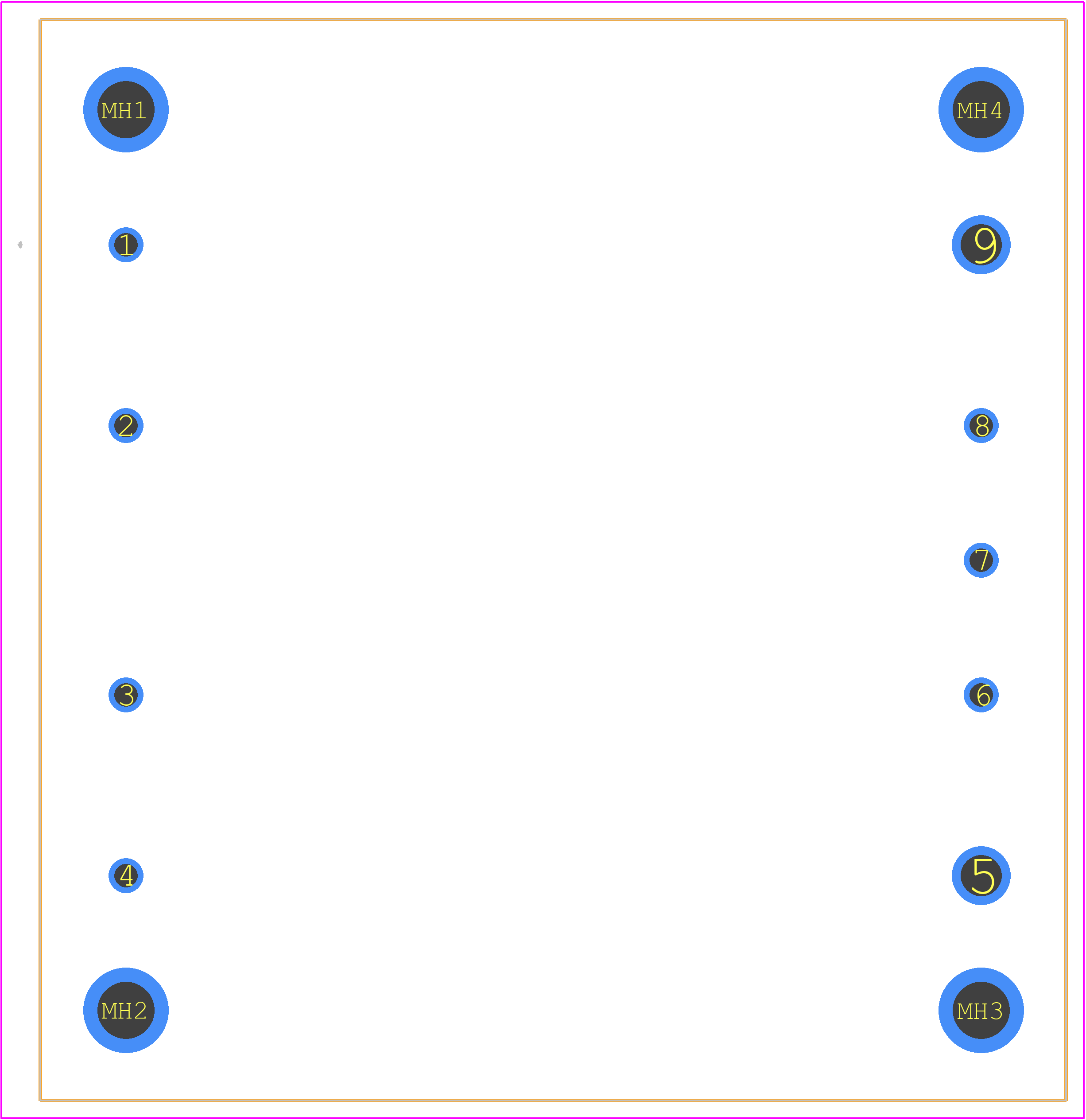

PCB Footprints
ICH10024S12 - XP POWER PCB footprint - Other - Other - ICH10024S12-5
click to zoom
3D Models
ICH10024S12 - XP POWER - 3D model - Other - ICH10024S12-5
click to zoom

ICH10024S12 Details

  • Manufacturer Part Number:

    ICH10024S12

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    MODULE

  • Pin Count:

    9

  • ECCN Code:

    EAR99

  • Manufacturer:

    XP Power

  • YTEOL:

    7

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Input Voltage-Max:

    36 V

  • Input Voltage-Min:

    18 V

  • Input Voltage-Nom:

    24 V

  • JESD-30 Code:

    R-MDMA-P9

  • Length:

    61 mm

  • Load Regulation-Max:

    0.2%

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    9

  • Output Voltage-Max:

    13.2 V

  • Output Voltage-Min:

    10.8 V

  • Output Voltage-Nom:

    12 V

  • Package Body Material:

    METAL

  • Package Code:

    DMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Seated Height-Max:

    13.2 mm

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Terminal Form:

    PIN/PEG

  • Terminal Position:

    DUAL

  • Total Power Output-Max:

    100 W

  • Trim/Adjustable Output:

    YES

  • Width:

    57.9 mm

ICH10024S12 Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the ICH10024S12 is -40°C to +85°C, with a derating of 2.5% per °C above 60°C.
  • To ensure reliability in high-vibration environments, it is recommended to follow XP Power's guidelines for mounting and securing the module, and to consider using additional mechanical support or vibration dampening measures if necessary.
  • Yes, the ICH10024S12 has a high isolation voltage of 1500VDC, making it suitable for applications requiring high isolation, such as in medical or industrial equipment.
  • The recommended input capacitance for the ICH10024S12 is 2x 22uF, 25V, X7R or X5R ceramic capacitors, connected in parallel and placed as close to the input pins as possible.
  • To troubleshoot issues with the ICH10024S12, refer to XP Power's application notes and troubleshooting guides, and consider consulting with XP Power's technical support team or a qualified engineer.
